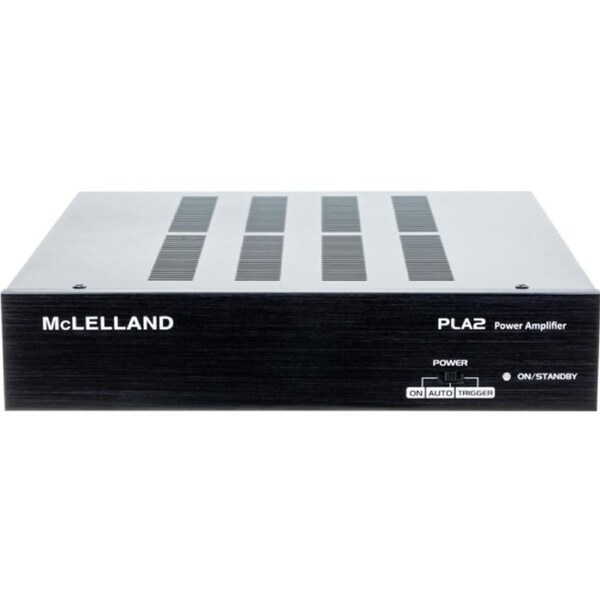

MCLELLAND 120W Power Amplifier Compact 100V Or 8Ohm Spk

Features

• It used 9.5 inches special tiny design.
• Two Channels Model ? 120W RMS/Per channel.

• Stereo into 4-8 Ohm loads.

• Bridged mode 240W output for 70V or 100V (Direct Drive)

• Power down after ~15 minutes of no signal and comply with Energy Star Power consumption limits of < 0.5W in standby.

• Red LED ( Front Panel) to indicated Standby mode is active.

• Terminal Block analog audio inputs.

• Selection for Power-Up mode.

• Switch for High Pass Filter.

• Natural cooling without Fan.

• TRIGGER could be external remoting ON/OFF.

• Short circuit protection.

• Overheating protection.

Specifications

• Stereo Mode (all channels driven)

• 120W x 2, 8O (31 V) RMS output (steady state), per channel @ < 1 % THD+N

• 120W x 2, 4O (22 V) RMS output (steady state), per channel @ < 1 % THD+N

• Bridged Outputs For 70V/100V (Switch at "HIZ" position)

• 240W, 70V @ < 1 % THD+N

• 240W, 100V @ < 1 % THD+N

• Frequency Response 20 Hz - 20 kHz, +/- 2 dB @ 4O Load

• Signal to Noise >90dB @ 1W(20 Hz - 20 kHz)
• Input Sensitivity1.0V (+0dBu) @ Max Output 4O

• Gain Value ?25 dB @ 4O

• Input Impedance >10k, Balanced.

• Maximum Input Level 12.3 V (+24 dBu)

• Trigger In/Out DC 12V

• High Pass Filter 80 Hz(2dB)

• Input Connector 5 pin Euro terminal

• Trigger Connectors 3.5 mm Jacks

• Output Connectors 4 pin Euro terminal (4O/8O)

• Dimensions 214mm(W) x 249.8mm(D) x 44mm(H)

• Net Weight 1.94 Kg

• Power Requirements 100 - 240 VAC, 50 - 60 Hz, 350W
