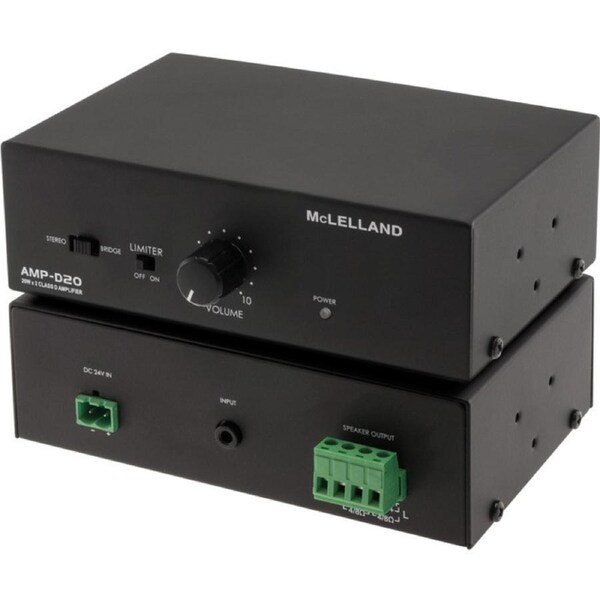

MCLELLAND Class D Power Amplifier 20W + 20W Mclelland Ampd20

Features

Class D Local Amplifier with 20W (AMP-D20)

The AMP-D20 provides 17Wrms (20W max) of audio power to 4Ohm (stereo) speakers. Perfect for in-wall/in-ceiling speakers, the AMP-D20 can be mounted on/in walls using the supplied mounting ears. It can also operate in Bridged mode to supply up to 31Wrms (40W max) to an 8Ohm speaker.

Features

• Operates in Stereo or Bridged modes (stereo or mono)
• 3.5mm Stereo input
• Quick disconnect screw-terminating plugs for easy installation (power + speaker output)
• Volume adjustment
• Input limiter for higher level audio sources such
• Power indicator

Specifications

• Frequency Response: 35Hz~50kHz (-3dB)
• Input Sensitivity: 330mV (20W 4Ohm)
• Input Impedance (Audio): 10k
• Output power:
  • Stereo:
    • 17Wrms (THD 1%) @ 4Ohm (20W max)
    • 8.5Wrms (THD 1%) @ 8Ohm (10W max)
  • Bridged:
    • 31Wrms (THD 1%) @ 8Ohm (40W max)
• S/N: -100dB 1kHz (4Ohm)
• Power Input: DC 24V
• Power Consumption: 40W (15W 1% 4Ohm)
• Dimension (WHD): 143 x 68 x 45mm
• Weight: 600g

FAQs

Downloads
