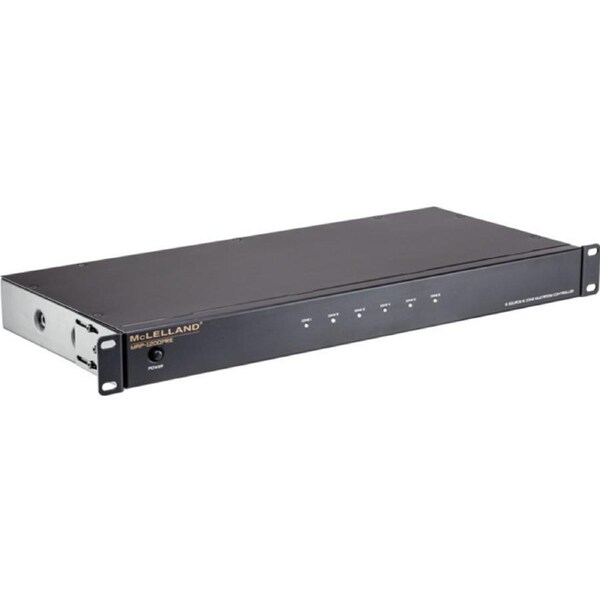

MCLELLAND 6 Zone Multiroom Controller 6 Source With Keypad
Features
Features
- 6 Line input sources, including 3xRCA, 2xStereo 3.5mm,and 1x S/PDIF
- Provides 6 output zones connecting with various power amplifiers for different purposes of applications
- Keypad controls each output zone for selecting the source, volume, treble, bass, and soundtrack via the hub
- Enable control over Ethernet TCP/IP via the PC or freemobile APP, supported by Apple IOS APP store and Andriod Google Playstore
- Dual LAN Ethernet RJ45 ports, one for the wired connection to the local network features an ethernet switch built-in, the second one can connect with the smart TV or other devices
- RS232 and Ethernet control switchable
- RS232 port allows 2-way communication with the Home Automation system
- Built-in IR receiver & IR remote controller
- 6 Individual 12V DC trigger output to an external device when the zone is activated
- Expandable up to 18 Zones by additional 2 units of MAP1200PRE with the supplied ribbon cable, easy to identify the unit via the Master/Salve switch
- 6 LEDs for 6 zones status of Power On (white), Standby(blue), and Mute (blue/white)
- AGC Automatic gain control to bring low level up to a present level
- Built in 2 of the IR emitter outputs to control the connected devices
- Rack-mountable
Specifications
Specifications
- S/N: -110dB
- THD: 0.05% (1V)
- Frequency Response: 20Hz - 20KHz (-0.5dB)
- Input Impedance: >47 K Ohms
- Input Sensitivity: 1V
- Crosstalk: -75dB (@1kHz)
- Output Impedance: 100 Ohms
- Output Level: 3V
- Trigger Out Voltage: DC + 12V
- Infrared Frequency: 38kHz
- Input Connectors: RCA, 3.5mm stereo, OPTICAL
- Output Connectors: Terminal Block
- Network Connector: RJ-45, Standard 10/100Mb
- Power Supply: DC 15V/1.6A
- Power consumption: 24 W, Max.
- Dimensions: 440 mm x 44 mm x 196 mm (WxHxD)
- Weight: 2Kgs
Package contents
- MAP1200PRE main unit x1 pc
- Rackmount ears x2 pcs (installed on the unit)
- Terminal blocks x12 pcs (installed on the unit)
- User manual x1 pc
- 15V 1.6A DC Power supply x1 pc
- Keypad and decora wall plate and screws x6 sets
- Keypad hub and decora wall plate and screws x1 set
- IR remote control x1 pc
- Remote control battery x1 pair
- Expansion ribbon cable x1 pc
FAQ
Q: How to find the IP address of the unit when connected to the router?
A: The unit defaults to DHCP ON. When it connects to the router, it will automatically obtain the IP address assignedby the router.
Few ways to find the IP address of the unit,
- Log in to the router, check the connected devices, looking for the name of MAP-1200PRE;
- Download "Advanced_IP_Scanner" software from www.advanced-ip-scanner.com to find the IP address;
- Find the IP address from the mobile APP, if it has connected to the MAP1200PRE.
