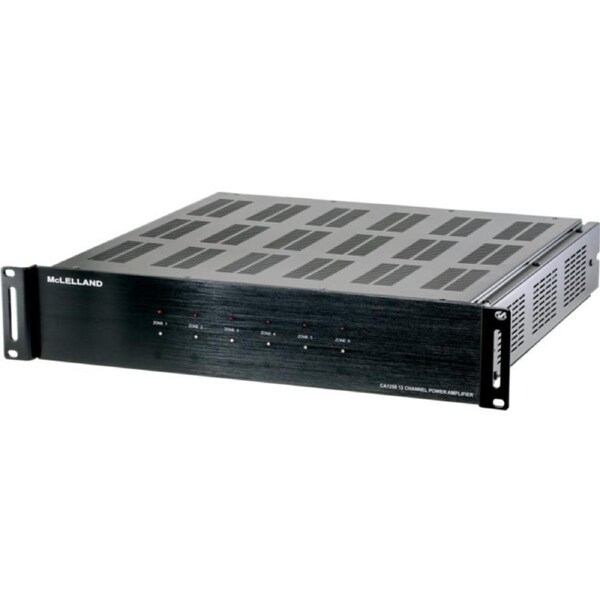

MCLELLAND 6 Zone 12Ch Power Amplifier 50W Output Power Per Channel
The CA-1250 is, at its core, a twelve channel audio distribution amp. Snore... That's why the CA-1250 does so much other stuff!!! OK. Yes, it is a twelve channel audio distribution amp that can be configured for six stereo 4Ohm/8Ohmzones (30W/channel @ 8Ohm; 50W/channel@ 4Ohm); but it can also be configured for six stereo 70/100V zones (30W/channel); or three high powered bridged zones (100W @ 8Ohm). By the way, the CA-1250 can be configured for any combination of stereo 4Ohm/8Ohm,8Ohm bridged and 70/100V zones all at the same time! That's some stuff, right? But there's more...
Each zone can be controlled via IR or RS232 for ON/OFF, Input, Volume/Mute, Treble/ Bass and Left/Right Balance. The RS232 section is bi-directional with easy to configure command structure. CA-1250 can be configured to automatically send zone status updates or respond to queries to confirm zone status and settings. Commands for volume, treble/bass and balance can be specific values or step commands depending upon the control application.
The CA-1250 has an Audio Bus IN that can be manually selected by IR commands, RS232 commands or voltage trigger.The voltage trigger will switch a zone to the Audio Bus IN as long as there is voltage present on the zone Line/Bus Trigger IN. When the voltage is cut, the zone automaticallyswitches back to the zone Line IN. Great for momentary switching to an audio page on the Bus IN!
Each zone has a Mute Trigger IN that will mute zone audio when voltage is present on the Mute Trigger IN. When the voltage is cut, the zone audio output resumes.
Each zone has a 12VDC Status or Control OUT that can be used to activate a zone specific voltage controlled device or otherwise indicate zone ON/OFF status.
Each zone has a -20dB audio limiter to prevent incidental peaks from becoming irrevocable problems.
The CA-1250 features a Remote Bypass switch that allows/blocks IR and RS232 from select zones for zones thatare intended to be set and not messed with.
Finally, the CA-1250 can has a 110~120V/220~240V select switch allowing it to be used just about anywhere there is AC Voltage. What? Yes of course it's rack mountable and comes with removable rack ears. The CA -1250 12 channel x 50W audio distribution amp...ready for anything...anywhere.
Please note this CA1250 requires the IR repeater, which is supplied seperately with the AMP to operate, such as ON/OFF, volume control.
Features:
- 4Ohm/8Ohm, 8Ohm bridged and 70/100V configurable- each zone
- Local source or Audio Bus IN- each zone
- IR/RS232 control- each zone
- 20dB Audio Limiter- each zone
- 12VDC Mute trigger IN; 12VDC Status OUT- each zone
- Front panel zone on and zone overload LEDs- each zone
- Rach mountable
- 110/220V switchable
- Dimension: W 430 x H 88x D 416mm
Specifications:
- Continuous Output Power per Channel:
- 30W@8Ohm
- 50W@4Ohm
- 100W Bridged@8Ohm
- 30W 70V/100V
- S/N: >85dB A WTD
- THD:<0.1%
- Frequency Response: 60Hz-20KHz
- Input Impedance:>47K Ohm
- Input Sensitivity: 600mV@30W
- Output connection: Terminal Block
