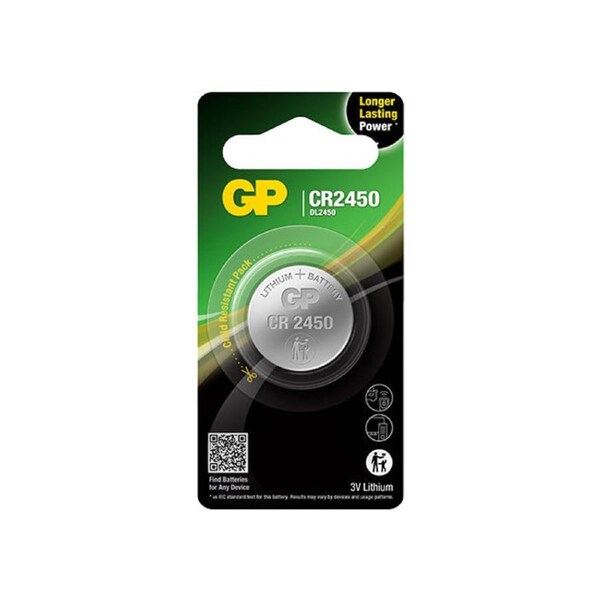

GP 3V 550Mah Lithium Battery Gp
3V LITHIUM BUTTON CELL / COIN BATTERY - GP
Coin-shaped cells are thin compared to their diameter. The metal can is the positive terminal, and the cap is thenegative terminal.
FEATURES:
- Lithium Batteries are primary batteries with outstanding high-energy density
- Voltage during discharge is about twice that of ordinary batteries.
- The energy density is the highest among conventional primary batteries - 5 to 10 times higher than that of carbon zinc batteries.
- These lithium batteries are able to operate at very low temperatures of around -20oC.
- Extremely small voltage decrease and very stable voltage during operation.
- CR denotes manganese dioxide lithium chemistry. Since LiMnO2 cells produce 3 volts there are no widely availablealternate chemistries for a CR coin battery. Conversely, one LiMnO2 cell can replace two alkaline or silver-oxide cells.
- All these lithium cells are rated nominally 3 volts (on-load), with open circuit voltage about 3.6 volts. The IEC "CR" prefix indicates a round, lithium/manganese dioxide cell. Some sizes are also designated with a "BR" prefix, indicating a round lithium/carbon monofluoride cell.
Common Applications:
- Electric wristwatches, both digital and analog.
- Calculators
- Hearing aids
- Some remote controls, especially for keyless entry
- Backup power for personal computer real time clocks and BIOS configuration data.
- Small PDA devices
- Various electronic toys (like tamagotchi, Pokemon Pikachu or a Pokewalker and other various Virtual Pet devices.)
- Laser pointers
- Small LED flashlights
- Battery-operated children's books
- Glucometers
- Security tokens
- Cyclocomputers
- Red dot sights and electronic spotting scopes
- Manual cameras with light meters, such as the Pentax K1000
- LED throwies
- Various video game cartridges or memory cards where battery-powered RAM is used to store data.
- PCMCIA static RAM memory cards
SPECIFICATIONS:
| IEC 60086 designation |
ANSI C18 /NEDA designation |
Typical Capacity mAh |
Dimensions (mm) Diameter x Height |
Comments |
|---|---|---|---|---|
| CR927 | 30 | 9.5 x 2.7 | This obscure type of lithium coin cell is used extensively in blinkies. | |
| CR1025 | 5033LC | 30 | 10 x 2.5 | Standard Discharge Current: 0.1 mA |
| CR1216 | 5034LC | 25 | 12.5 x 1.6 | Standard Discharge Current: 0.1 mA |
| CR1220 | 5012LC | 35-40 | 12.5 x 2.0 | Standard Discharge Current: 0.1 mA, 0.03 mA (BR) |
| CR1225 | 5020LC | 50 | 12.5 x 2.5 | Standard Discharge Current: 0.2 mA. Maximum discharge current: 1 mA. Maximum pulse discharge current: 5 mA. {Energizer says this type is obsolete.} |
| CR1616 | 50-55 | 16 x 1.6 | Standard Discharge Current: 0.1 mA | |
| CR1620 | 5009LC | 75-78 | 16 x 2.0 | Standard Discharge Current: 0.1 mA |
| CR1632 | 140 120 (BR) |
16 x 3.2 | Standard Discharge Current: 0.1 mA, 0.03 mA (BR) | |
| CR2012 | 55 | 20 x 1.2 | Standard Discharge Current: 0.1 mA | |
| CR2016 | 5000LC | 90 | 20 x 1.6 | Standard Discharge Current: 0.1 mA, 0.03 mA (BR). Often used in pairs instead of CR2032 for devices that require more than 3 V, like blue/white LED flashlights. |
| CR2025 | 5003LC | 160-165 | 20 x 2.5 | Standard Discharge Current: 0.2 mA. |
| CR2032 | 5004LC | 220-225 | 20 x 3.2 | Standard Discharge Current: 0.2 mA, 0.03 mA (BR). Maximum discharge current: 3 mA. Maximum pulse discharge current: 15 mA. Common battery in computers to keep the date and CMOS settings current when power is off. |
| CR2330 | 265 255 (BR) |
23 x 3.0 | Standard Discharge Current: 0.2 mA, 0.03 mA (BR) | |
| CR2354 | 560 | 23 x 5.4 | Standard Discharge Current: 0.2 mA | |
| CR2430 | 5011LC | 24.5 x 3.0 | ||
| CR2450 | 5029LC | 610-620 | 24.5 x 5.0 | Portable devices requiring high current (30 mA) and long shelf life (up to 10 years) |
| CR2477 | 1000 | 24.5 x 7.7 | Standard Discharge Current: 0.2 mA | |
| CR3032 | 500-560 500 (BR) |
30.0 x 3.2 | Standard Discharge Current: 0.2 mA, 0.03 mA (BR) |
