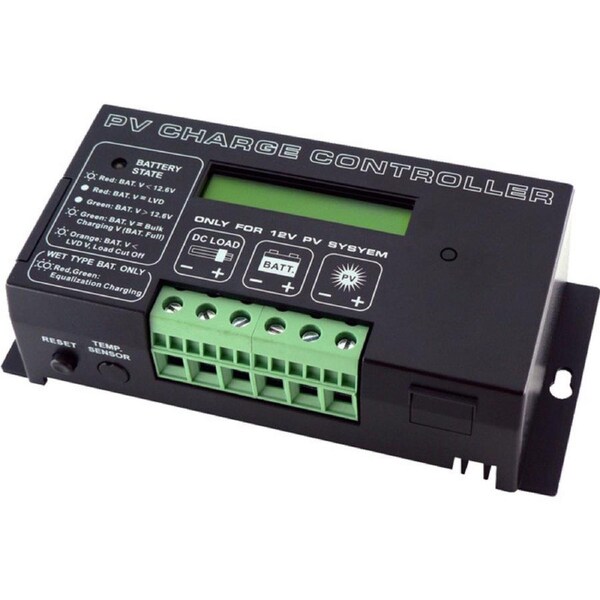

MANSON 12V 20Amp Pv Solar Charge Controller Solar Regulator
Overview
PV Panel 12V, 20A System, LCD & LED Display
The SBC-7100 Series PV charge controller is designed for use with all types of photovoltaic panels and differenttypes of batteries, such as wet or sealed lead acid, lead calcium, lead antimony battery.
The MCU (Microprocessor controller) is programmed with 3 stage charging algorithms and with 0~100% PWM (Pulse Width Modulation) duty cycles to provide the fastest, optimal charging current and voltages from PV panels according to the actual state of charge and type of battery.
Bulk, Absorption, Float and Equalisation threshold charge voltage levels are user adjustable to meet specific battery manufacturer's recommendation. Hence, maximum PV charging efficiency and longer the service life span of the battery are ensured.
Electronic blocking of back current to PV and overcharging battery protection are standard. Ampere Hour logging read outs in three sets, today and last two days are shown on the LCD. This is useful to check the condition of PV data for efficiency and actual capacity of your system.
Equalisation Charging is only for wet type lead acid battery; automatically cycles once a month for 2 hours. Equalisation Charging can be de-activated or re-activated manually.
DC Output (for Small DC Load)
The DC output terminal has many value added night-lightmode programs, please see user manual at our website for detail descriptions. The DC output has dusk to dawn automatic on-off operations. There are 10 selectable multiple on-off programs, each with different power-on durations for various needs or lighting schedules. The battery low voltage level disconnect and reconnect settingsare user adjustable.
Features:
- User adjustable charging voltages between 12V to 16.5V.
- Suitable for most types of heavy duty 12V battery.
- Microprocessor control PWM and 3 stage charging algorithms.
- Bulk, Absorption & Float Charge status on LCD Display.
- Ampere Hour logging read outs in 3 sets, today and last 2 days.
- 5 State LED Indications of battery levels.
- Electronic Overcharge Protection & Back Current Blocking to PV panel.
- Over Temperature Protection of PV Charge Controller's electronic circuit.
- Dusk to Dawn automatic ON-Off with 10 selectable on-off programs.
- Adjustable battery low voltage level disconnect and reconnect for DC output.
Specifications
Specifications
| Battery Voltage | 12V DC |
| Max. PV Panel Open Circuit Voltage |
26V DC |
| Continuous Charge / Load Current |
20A |
| Maximum Charge Current (5 mins.) | 25A |
| Maximum Load Current (5 mins.) |
25A |
| Operation Current (no load and PV) |
30mA |
| Voltage Across Terminals (PV to Battery) |
0.8V |
| Voltage Across Terminals (Battery to Load) |
0.4V |
| Electronic Blocking |
Yes |
| Battery Reverse Polarity Protection |
Yes |
| Overcharge & Over-Discharge Protection |
Yes |
| Battery Status LED indication |
5 - State LED indications |
| Charging Status LCD indication |
3 - State LCD Display |
| Recommended Wire Size |
#12 AWG |
| Weight | 0.47kg |
| Dimensions (WxHxD) | 150mm x 45mm x 85mm |
| Fuse | 30 |
| Operating Ambient Temperature |
-10 to 50 oC |
| Over Temperature Protection | Yes |
| Battery Charging Float Voltage Setting | Adjustable from 12V to 15V |
| Battery Charging Bulk Voltage Setting | Adjustable from 12V to 16V |
