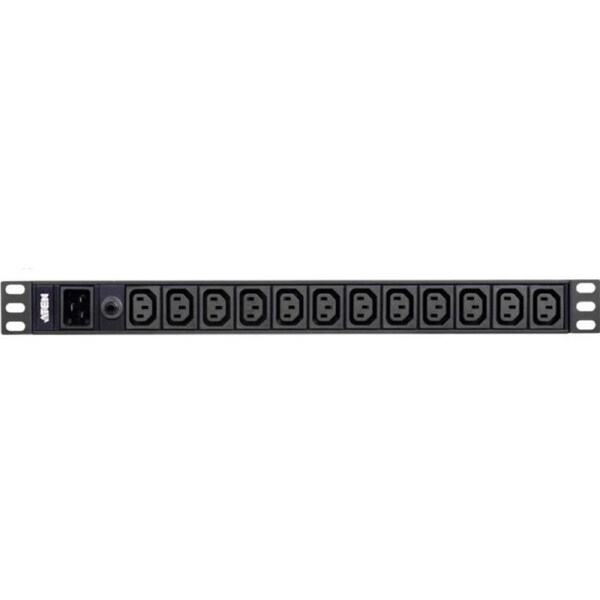

ATEN Aten 12 Port 1U Pdu 10A Iec-C13 X 12
Features
Aten 12 Port 1U Basic PDU supports up to 10A with 12 IEC C13 outputs, overload protection
Overview
The PE0112 series Basic PDU contains 12 AC outlets. The PE0112 series Basic PDU features a space-saving 1U design that allows it to be mounted vertically on the outside of a rack, resulting in a moreeffi cientuse of space in the server room, while providing 12 AC outlets.
- Space saving -1U rack mount design
- IEC outlets
- Overcurrent Protection
- Aluminum material
- 1x Basic PDU
- 1x Power cord
- 1x User Instructions
Specifications
| Electrical | |
| Nominal Input Voltage | 100-240 VAC |
| Maximum Input Current | 10A(Max) |
| Input Frequency | 50-60 Hz |
| Input Connection | IEC-320 C14 |
| Input Power | 2400 VA(Max) |
| Outlet Type | (12) IEC 320 C13 |
| Nominal Output Voltage | 240V |
| Maximum Output Current (Outlet) | 10A(Max) |
| Maximum Output Current (Bank) | 10A(Max) |
| Maximum Output Current (Total) | 10A(Max) |
| OPD(Overcurrent Protection Device) | Yes |
| Physical Properties | |
| Dimensions (L x W x H) | 48.80 x 4.40 x 4.50 cm (19.21 x 1.73 x 1.77 in.) |
| Weight | 0.62 kg ( 1.37 lb ) |
| Power Cord Length | 10ft(3x1.0mm2) |
| Environmental | |
| Temperature (Operating / Storage) | 0 - 40oC / -20 - 60oC *When the environmental temperature comes close 40 degrees, it is recommended to lower the load to 60% to comply to the safety regulations. |
| Elevation (Operating / Storage) | 3000m |
| Compliance | |
| EMC Verification | CE Class A |
| Safety Verification | CE,LVD |
| Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
