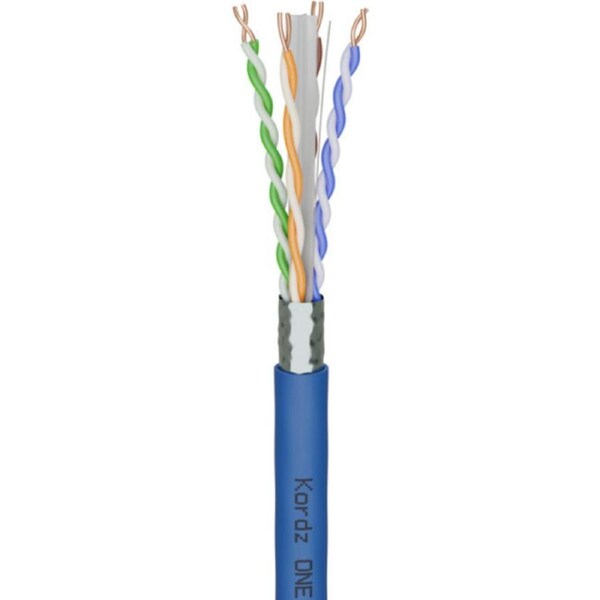

KORDZ One - Blue Cat6A F/Utp Bulk Network Cable Lszh - Pvc Free - 305M Sp00L
Kordz K13602-Blue 305M spool - ONE Series CAT6A F/UTP Network Cable
Kordz ONE Series CAT 6A F/UTP premium cable is engineered to exceed 4K video installation bandwidth requirements and minimise alien crosstalk or electromagnetic interference in complex systems. The Rapid-EZ reel is metre marked and flows from the supplied professional pull box without twisting or curling, minimising snags for optimal installation uptime. ONE series CAT 6A F/UTP cable is tested and approved to exceed 550Mhz, ANSI/TIA 568-C.2 and ISO/IEC 61156-5 standards.
- Suitable for 10BASE-T, 100BASE-TX, 1000BASE-T/1000BASE-TX (Gigabit) & 10GBaseT, PoE, PoE+ & PoE++
- F/UTP Ethernet CAT6a
- Four Twisted Pairs 23 AWG Solid Copper Conductors
- Separator Reduces Crosstalk Between Pairs
- Mylar laminated aluminium tape shielding with a 26AWG drain wire
- Suitable for IDC Terminations
- Metre Marked
- 6 colours available: Black, Blue, Green, Purple, White & Yellow
- Exceeds ANSI/TIA-568.2-D and ISO/IEC 61156-5 standards
- Available in LSZH fire rated version
- CPR Declared Performance: ONE-CAT6A: Dca-s1, d2, a1 (EN 50575:2014+A1:2016)
Technical Info
Construction
Conductor:Solid OFC annealed bare copper wire 0.561 +0/-0.015mm [23AWG]
Insulation:Orange & Brown Pairs- Polyethylene (PE), 1.12+/-0.05 mmBlue & Green Pairs- Foam PE, 0.97 +/-0.05 mm
Twisting:4 twisted pairs, 2 cores to each pair
Twisted Pair Colour Code: 1 - white-blue/blue, 2 - white-orange/orange, 3 - white-green/green, 4 - white-brown/brown
Cable Lay-Up:4 pairs with different pitches, non-metallic cross separator (spine)
Shielding:Drain wire [26AWG], Mylar tape laminated with aluminium foil as a shield
Outer Diameter:7.4 +/-0.3 mm
Mechanical
Bend Radius:without load 29.6mm /1.16", with load 59.2mm /2.33"
Temperature Range:During Operation:-20oC to 60 CDuring Installation:0oC to 50 C
Electrical
DC Resistance: 9.38Ohm / 100m at 20 C
Resistance Unbalance: 2% at 20 C
Insulation Resistance (500V): 5000MOhm / km at 20 C
Mutual Capacitance: 5.1 nf / 100m at 1khz
Capacitance Unbalance (pair to ground): 160 pf / 100m at 1khz
Nominal Velocity of Propagation:nom. 67% c
Test Voltage:1kV DC / 1 min
Materials/Marking & Fire Ratings
LSZH
Kordz ONE Solid OFC UHD/4K Video Network Cable. ETL VERIFIED TIA-568-C.2 (100372289CRT-001c) LSZH CAT6A F/UTP 23AWG. IEC 60332-3-25
FRPVC
Kordz ONE Solid OFC UHD/4K Video Network Cable. ETL VERIFIED TIA-568-C.2 (100709714CRT-002c) CM CAT6A F/UTP 23AWG. UL 444 CM
Black:RAL9011
Blue:RAL 5015
Green:RAL 6018
Purple:RAL 4005
White:RAL 9003
Yellow:RAL 1018
Packaging
Roll Size:305m - metre marked
Supplied on a standardised wooden reel. This reel will need to be used with a standard a frame spool dispenser or similar.
