DOSS Rg59 And Fig8 Cctv Combo - 1M - Per Metre
Features
METRE CODE:Please note that this product is sold in METRES.
Ensure that your order quantity matches your desired length (ie. 30 for 30m).
Length in brackets- eg. (100m) denotes available roll length.

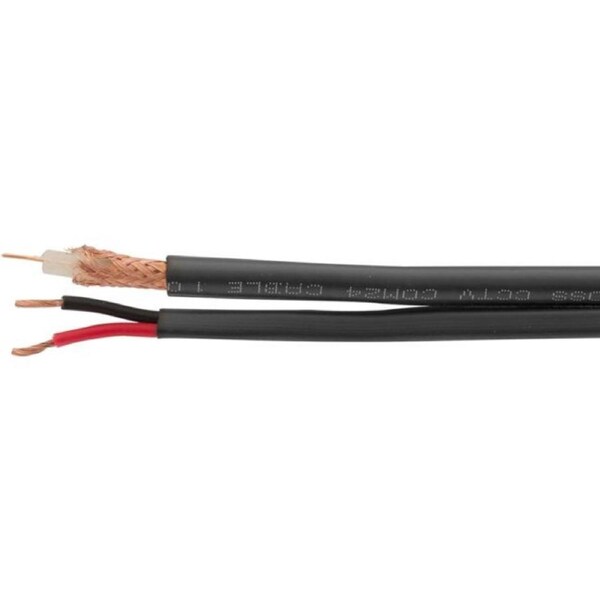

Figure-8 RG59 Video Coax + heavy duty 2-core power cablewith tracer
- IMPROVED DESIGN
The construction has been improved to have 2 separate butbonded (figure 8) power and RG59 video cables.
This is an improvement as there's one less jacket for easier install and due to the better placement of the figure8, there is less crosstalk - Designed for commercial applications
- Overall: 10mm max width
- Our CCTVCOM24 has been quality checked.
- Video signal over 100m - Pass
- Power attenuation over 100m under a load - Pass
- RG59 Attenuation (dB/100m):
- 9.342 @ 55MHz
- 19.071 @ 211MHz
- 28.846 @ 450MHz
- 41.635 @ 870MHz
- 45.388 @ 1000MHz
- 55.268 @ 1450 MHz
- 69.270 @ 2150MHz
- 83.187 @ 3000MHz
Downloads
Download the DOSS RG59UAttenuation Test Results (.pdf)
FAQs
Q. Can CCTV cameras operate over the full 100m length of the CCTV cable?
Yes. Picture remains excellent and there are no issueswith power.
Method:
We tested a Doss IN50PRO connected to a Doss 12VDC/500mA powersupply over the full 100m length.
We measured voltage input at 12.18V and output voltage at 10.38V.
Current draw was 260mA and resistance was 7 Ohms.
