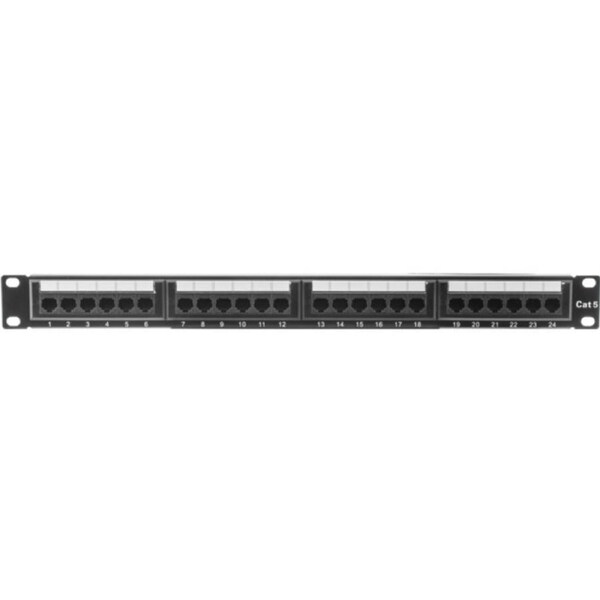

TE 24 Port Cat5E Patch Panel Te Tech

CAT5E METAL PATCH PANEL

FEATURES:

• Patch panel case, metal 1U
• RJ45 Jack
  • Body: PC UL94V-0 rated.
  • Colour: Black, other colours available MOQ
  • Contacts: Phophor Bronze,
  • 50u" Gold plated over Nickel plated in contact area.
  • Tin-lead over Nickel in solder area.
• Connector:
  • 110 connector body: PC UL94V-0
  • Colour: Ivory
  • Contact: Phosphor Bronze with Tin plated
• P.C. board: FR4, 1.6mm double side, UL94V-0
• Operation temperature: 0 to 80 C
• Insertion force: 900gms for 8 contacts
• Retention strength: 7.7kgs between jack and plug
• Durability: 750 cycles contact resistance test check every 100 cycles. Insertion cycles at 20 cycles/minute max.
• Certificates: ETL verify, UL listed, ANSI/TIA/EIA-568-B.2 SO/IEC 11081 class E, FCC


Ship out the order within 24-48 hours.
