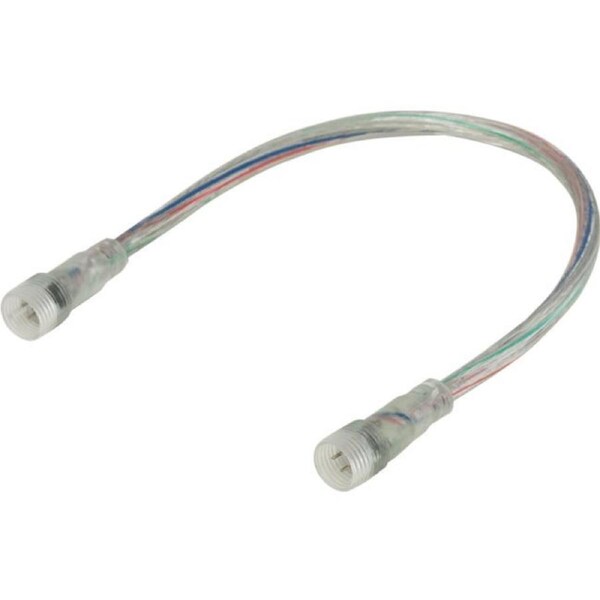

4 Pin Waterproof Plug-Plug Led Connector Lead
4 PIN WATERPROOF CONNECTOR PLUG TO PLUG LEADS
FEATURES
This is waterproof connector is to connect the RGB light.
Connection to transformer, for connecting LED strips, LEDwall-washers, LED underground light, LED rope right, LED belt light, curtain light, twinkle light and many application.
Package Included: 1 Set ofWaterproof Connector 4 Pin Push In PLUG TO PLUG Wire RGB
NOTE:
1.Finished products must have 100% electrical test, disallwing open circuit/short circuit, electrical sudden disconnection.
2.Insulation Resistance: 5.0M ohm/least.
3.Energy Impedance: 3.0 ohm
4. The products passed the RoHS environmental requirements.
5. Connecting point must be one to one.
SPECIFICATIONS
| IP68 Waterproof 4 pin Connector PLUG | |||
| 1 | Model No. | ||
| 2 | Material | Connector Body | Nylon(PA66)+GF UL94V-0 1/16'' |
| 3 | Contact | Brass with Gold Plated | |
| 4 | Sealing | Silica Gel | |
| 5 | Property | Current Rating | 1-5A |
| 6 | Voltage Rating | 500V | |
| 7 | Contact Resistance | <10mO | |
| 8 | Insulation Resistance | 10MO at DC200V | |
| 9 | Breakdown Voltage | 1.5KV/1minute | |
| 10 | Temperature Rating | -40oC~+120oC | |
| 11 | Durability(Plug/Unplug) | 3000 times | |
| 12 | Waterproof Rating | IP68 | |
| 13 | Cable Max. Diameter | 10mm | |
| 14 | Pins Range | 2,3, 4, 5, 6, 7, 8 | |
| 15 | Certificate | CCC; CE; ROSH |
Material
Terminal: Space between 2.54 2*2P Pin Header, Plating gold/tinSizing Material: 35P-PVC, transparent
Waterproof Circle: Black
Nut shell: Transparent
Connect all kinds of LED lighting products for indoor andoutdoor, for example: LED Strips, LED Spotlights, LED Flood lights, LED Wall washers.
Ship out the order within 24-48 hours.
Estimated Delivery Time Frame: 2 - 15 business daysChange of mind:
Customer can return the item if purchased by mistake within 14 days of the customer’s order being received.
Change of mind returns will only be eligible for a refund on the product’s sale price within receiving the item'. Return postage is paid by the customer.
