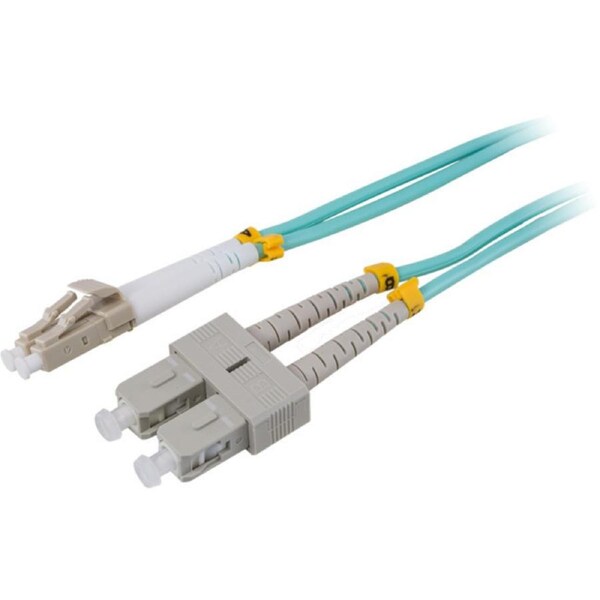

PRO2 2M Fibre Patch Lead Lc-Sc Od 2.0Mm Duplex 50/125 (Om4)
Features
OM4 Laser-Optimized Multimode Fiber (LOMMF) "Aqua" cables, is used for 10/100Gb Ethernet applications. These new technology, 50/125um, LC/SC OM4 Fiber Optic Patch Cord, provide nearly three times the bandwidth over conventional 62.5um multimode fiber, with performance rivaling that of Singlemode cable, at a much reduced cost. LOMMF cable allows 10/100Gb serial transmission over extended distances in the 850nm wavelength window, where low-cost Vertical Cavity Surface Emitting Lasers (VCSELs) enable a cost-effective, high-bandwidth solution.
LOMMF is ideally suited for LAN's, SAN's, and high-speed parallel interconnects for head-ends, central offices, and data centers.
- Designed for 10/40/100-Giga Ethernet applications, OM4 Rated
- 10//40/100gb Ethernet speed to 300 meters @850nm
- Use with VCSEL and LED laser light sources
- High-Speed, High-Bandwidth, Low-Cost
- Backward compatible with legacy LAN's
- Ideal for Fibre Channel (SAN) applications
- IEEE 802.3ae and TIA LOMMF compliant
Specifications
Type |
Multi-mode 50/125 OM4 |
Insertionloss |
0.3dB |
Return Loss |
35 dB |
Network Speed |
10Gbps / 40Gbps / 100Gbps |
Repeatability |
0.1dB |
Durability |
1000matings |
OperatingTemperature |
-40oCto +80oC |
Tensile Strength(N) |
90N(3), 70N(2) |
