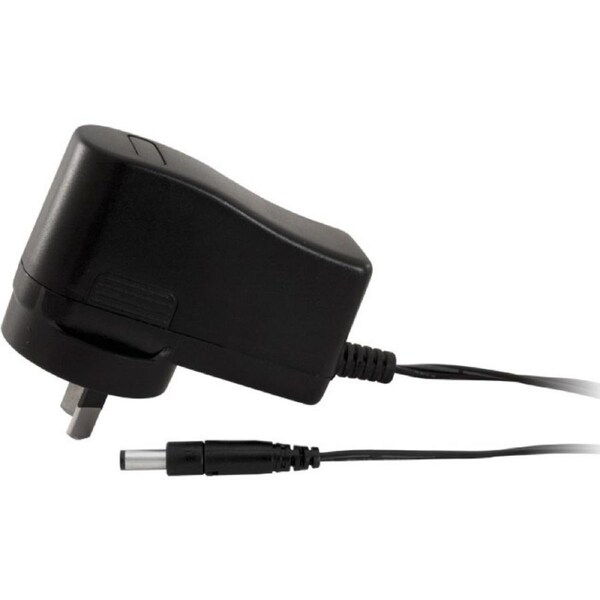

DOSS 15V 300Ma Dc Power Supply Switchmode 2.1Mm Centre Positive

• 1.1 Rated input voltage:100-240V AC
• 1.2 Vibration input voltage range:90-264V AC
• 1.3 Rated input frequency:60/50Hz
• 1.4 Vibration Rate input frequency:63/47Hz
• 1.5 AC input Rated current:0.2A Max .@100V AC
• 1.6 AC input Max power(No load):0.3W Max .@230V AC
• 1.7 Inrush Current:30A Max .@100VAC cool start
• 60A Max .@230VAC cool start
• 1.8 Leakage current:0.25mA

Rating Label

• 2.1 Rating output voltage:15V
• 2.2 Rating output current:0.3A
• 2.3 Min. load current0A
• 2.4 Output noload voltage:15V5%
• 2.5 Output load voltage:15V5%
• 2.6 Output ripple & noise:200mV

• 3.1 Max output power:4.5Watts
• 3.2 Efficiency:71%(min.)@full load & input 230VAC,Output set to 15V/0.3A.
• 71%(min.)@full load & input 115VAC,Output set to 15V/0.3A.
• 3.3 Short circuit protection:Protection against short circuit for output.
• The output can be shorted without damage.
• 3.4 Overshoot / Undershoot: 15V10%
• 3.5 Switching Frequency:40 KHz Typical

• 4.1 Operating temperature:0~40c
• 4.2 Storage temperature:?25 to to 85c
• 4.3 Operating relative humidity: 8% to 90%
• 4.4 Storage relative humidity:5% to 95%
