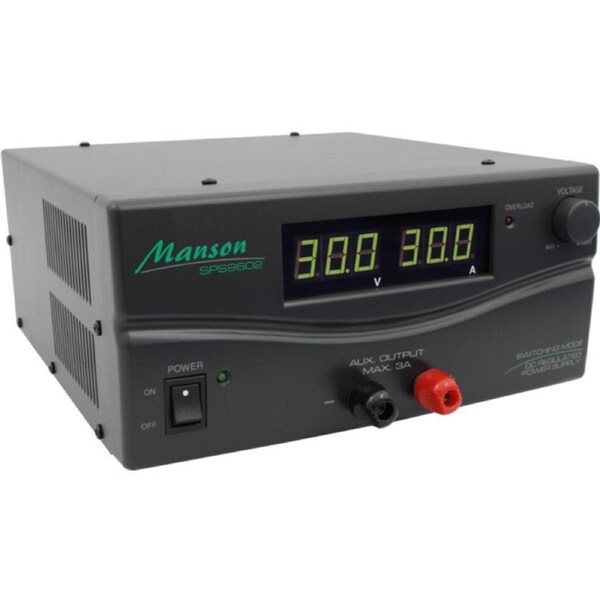

MANSON 1-30V 30A Dc Power Supply Switchmode Bench Top Dark Grey
1-30V 30A DC POWER SUPPLY
SWITCHMODE BENCH TOP - DARK GREY
This high current switching mode DC regulated output power supply is designed with a highly efficient active power factor corrector. The constant current limiting protection allows the output current to remain stable but the output voltage decreases to a level that permits safe operation of the power supply.
The remote sensing terminals are used to compensate for output line losses 80 that a precise regulation can be achieved for critical voltage application away from the power supply.
The output voltage level and ON/OFF can be externally controlled via the remote terminal.
It is ideal for applications that need good quality highDC current network with precise point of voltage regulation.
SPS-9602 has a small footprint for its 900W continuous maximum power.
It is suitable for a wide range of applications such as street blaster super high power car audio demonstration console, radio equipment and etc.
Features:
- Total max. continuous output current: 30A
- Main Output/Remote Sensing/ Remote Control/ terminals at the back
- Front terminals: 3A limiting.
- (Precise Load Point Voltage)
- Remote Sensing for remote point of regulation.
- Remote control terminals for output voltage adjustment and*on/off"
- 29HR Count Down Timer (Optional) for Output ON/OFF
- Floating Ground Design
- Overload / Over-temperature / Short Circuit Protections
- Constant Current mode with LED indicator prevents overloading
- Variable speed thermally controlled fan
- High RFI stability
- Active power factor correction (P.E >0.97)
Specifications:
| Variable Output Voltage | 1V to 30V DC |
| Total Rated Output Current (Main Output + Front Output) | 30A |
| Rated Output Current (Main Output) | 30A |
| Rated Output Current (Front Output) | 3A |
| Load Regulation (Main Output) | 0.1% +5mV |
| Line Regulation (Main Output) | 0.05% +3mV |
| Ripple & Noise (Peak-Peak) | 50mV p-p |
| Input Voltage | 230V AC, 50Hz- |
| Efficiency | >85% |
| Meter Type | LED Meter |
| Voltmeter Range | 3 digit display |
| Ammeter Range | 3 digit display |
| Meter's Accuracy | 1% +1 count |
| Protection Devices |
|
| Cooling System | Variable speed thermally controlled fan |
| Special Features |
|
| Approvals |
|
| Dimensions (WxHxD) | 220mm x 110mm x 360mm (8.7' x 4.3' x 14') |
| Weight | 5.8kgs (12.81bs) |
| Remarks | Power factor correction >0.95 at optimal load |
