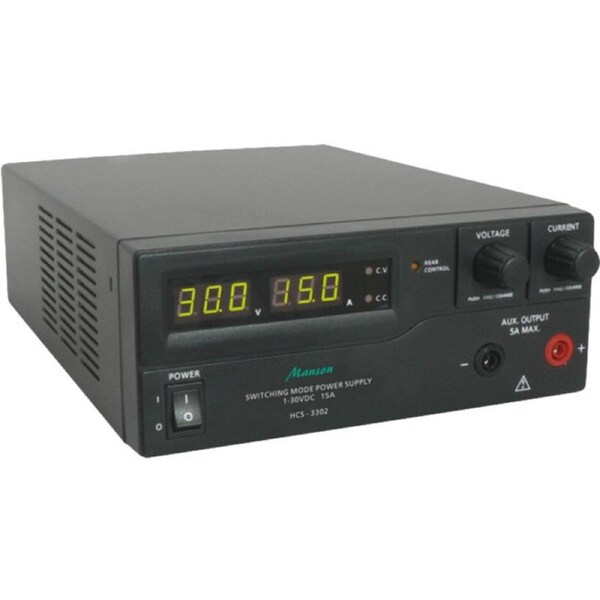

MANSON 1-32V 0-15A Power Supply Switching 3 Digi Led W/Usb
Overview
1-32V 0-15A POWER SUPPLY
SWITCHING 3 DIGIT LED W/USB
These are cost effective remote programming power supplies with lab graded performance. They are ideal for laboratory, university, workshop, production, quality control and advanced DIY. Computer interface via USB for cyclical operation, plus wired analogue remote control make these power supplies open up many demanding applications. Fine and Coarse tuning with definitive rotary encoder volume knob and open circuit CC settings are user friendly.
This range of high graded SMPS is designed for a wide range of applications for telecommunications, laboratory and industry. The power efficient circuit designs allow units tohave small form factor with low profile and small footprint casings. The intelligent fan speed control program checks the fan at power on and adapts the right speed to ensure a quiet and safe operation of the power supply at different ambient temperatures and power output levels. The dual action (coarse & fine set) control knobs make tuning the voltage and current level ever so smooth, precise and fast, due to the rotary encoder and microprocessor control. Setting the CC current limiting can be done in open circuit at output poles. The isolated ground construction allows parallel and series connection of power supplies with ease and safety. The three user-defined presets of voltage and current limiting levels facilitate quick access to frequently used VI settings. Analogue remote control functionality offer a wide range of operation possibilities for the industrial and more sophisticated users. A USB port for access to computer to run cyclical operation with programmable voltage, current, period time and cycles.
Features
- Rotary Encoder Control Knob with coarse & fine tuning
- PC interface USB for program runs of up to 20 sets V & I, time set and 999 cycles.
- Wired analogue remote controls of ON/OFF, V and I
- High RFI immunity & excellent EMI
- Intelligent fan control from zero to full speed
- 3 user presets on unit
- Open circuit Constant current limit
- Isolated ground and active PFC & high power efficiency
- Over Load, Over Temperature & Tracking Over Voltage Protections
- Remote Programmable via USB to computer
- Application software, command sets and Labview driver.
- Output Voltage: 1-32V
- Output Current: 0-15A
Specifications
Specifications
| Models | HC-3300-USB | |
|---|---|---|
| Output | Variable Output Voltage | 1-32V DC |
| Variable Output Current | 0-15A | |
| Voltage Regulation | Load (10-100% Load) | 50mV |
| Line (170-264V AC Variation) | 20mV | |
| Current Regulation | Load (10-90% Rated Voltage) | 100mA |
| Line (170-264V AC Variation) | 50mA | |
| Ripple & Noise | Ripple & Noise (r.m.s) Voltage | 5mV |
| Ripple & Noise (peak-peak) Voltage | 50mV | |
| Switching Frequency | 75-95KHz~ | |
| Tracking Over Voltage Protections |
|
|
| Meter Type & Accuracy | Voltage Meter | 3 Digit LED Display (0.2% +3 counts) |
| Current Meter | 3 Digit LED Display (0.2% +3 counts) | |
| Other | Input Voltage | 200-240V AC 50-60Hz |
| Full Load Input Current | 2.4A | |
| Efficiency | 86.5% | |
| Power Factor Control | Power factor correction >0.95 at optimal load | |
| Cooling Method | Thermostatic Control Fan from Zero to full speed | |
| Protections |
|
|
| Special Features |
|
|
| Preset Cycle Programming |
|
|
| Approvals |
|
|
| Packaging | Dimensions (WxHxD) | 200mm x 90mm x 215mm |
| Weight | 2.6kg |
Videos
Using the HCS Series Power Supplies with Raspberry Pi
Loading the driver
Controlling via Raspberry Pi
Downloads
User Manual
HCS-3302-USB User Manual pdf; 1.31MBShip out the order within 24-48 hours.
