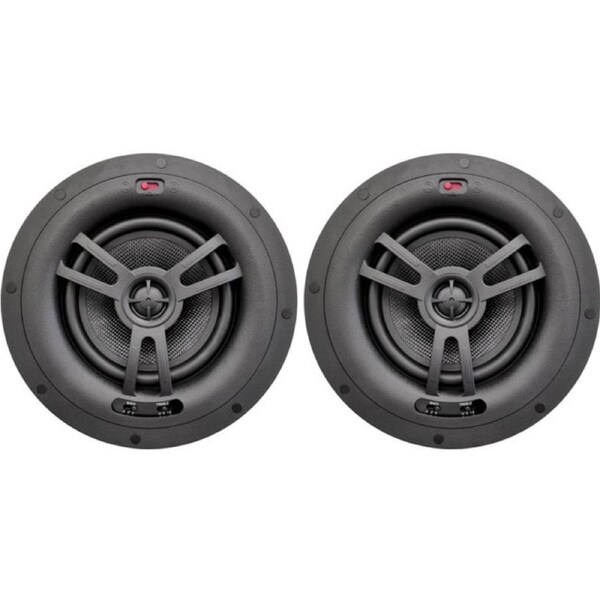

EARTHQUAKE 6.5" Edgeless Ceiling Speakers Pr One Hander Ez Mount Shallow
Earthquake Sound recognizes that standing on top of a ladder to install speakers can be an aggravating task for anyone. The newest member of Earthquake's line of architectural speakers addresses this issue and gives to youthe OH6. Designed for a broad audience from the DIYer to theaudio integrator, this in-wall/in-ceiling speaker is the perfect choice for any audio project. The 6.5" 2-way coaxialwas made for both performance and ease of installation in mind.
Fitted with a revolutionary EZ Mount System, it sets itself apart from others in that it offers a frustration-free experience for all skill levels making yourinstallations ultra-fast and stupid simple. Constructed withquality components and compatible with a variety of wall thicknesses, the OH6 is an ideal choice for those who desirea more invisible or discrete integration. The OH6 is excellent whether it uses for music or home theater applications and will complement any new or pre-existing construction. Make your audio jobs a breeze and enjoy a rich, full-bodied sound with the all-new Earthquake Sound OH6.
Features
EZ MOUNT SYSTEMMake installations easier by simply cutting the mounting hole, attach speaker wires, push the speaker into place, androtate the tweeter bridge to secure it to the drywall. Lock it and done!
SHALLOW DEPTH INSTALLATION
80mm (3.14") mounting depth is perfect for those limited roof cavity installations, such as the ground floor of a two-storey house.
TONAL CONTROLS
A 3-position bass and treble selector switch on the OH6 allows the listener to fine-tune low and high frequencies tomeet their preferences based on sitting position as well as application.
Bass: -4/-2/0 Treble: -2/0/+2
2-WAY COAXIAL DESIGN
The OH6 is a 2-way system equipped with a 6.5" (165mm) stiff woven carbon fiber cone midrange/bass driver for lower distortion and a whopping 1" (25mm) pivoting silk dome neodymium tweeter for precision sound staging.
SEAMLESS INTEGRATION
The OH6 accepts a drywall thickness of 0.5" (12mm) to 1" (25mm) makes it an extremely versatile option whether installed for home theaters or commercial spaces. With a magnetically attached and paintable grille, Edgeless design for better aesthetic and reduced visibility and givesthis speaker a high-end and professional look that will blend in with any decor
- Trimless round magnetically attached paintable Anti-Rust Magnetic Grilles
- 1" (25mm) adjustable pivoting silk dome neodymiumtweeter
- Low mass stiff carbon fiber cone woofer for a smooth, accurate, and detailed output
- In-wall or in-ceiling applications
- Dog ear locking mechanism
- Elaborate crossover network With Polyswitch Protection
- Gold plated spring-loaded terminals
- Grille removal tool included
- Sold by the pair
Specifications
- Power Handling: 150W MAX
- Frequency Response: 50Hz-15kHz
- Impedance: 8-Ohm
- Sensitivity: 87dB 1W/1M
- Midrange/bass Size: 6.5"
- Woofer Material: Carbon Fiber
- Surround Material: Butyl Rubber
- Tweeter Size: 1" (25mm) Pivoting
- Tweeter Material: Silk Dome, Neodymium
- Elaborate Crossover Network
- Round Grilles Included
- Grille Removal Tool Included
- Grille Finish: White/Paintable
- Rough-In Kit Ready
- Enclosure Material/Type Impact resistant ABS plastic
- Frame Diameter: 9.05" (230mm)
- Grille Diameter: 9.13" (232mm)
- Mounting Depth: 3.14" (80mm)
- Overall Depth: 3.5" (88.9mm)
- Cutout Diameter: 7.87" (200mm)
- Magnet Diameter: 3.34" (85mm)
- Weight: 3.9lbs (1.76kgs)
IN THE BOX
- 2 x OH6 Speakers
- 1 x Cutout Template
- 1 x Product Manual
- 1 x Grille Removal Tool
- 2 x Round Grilles
