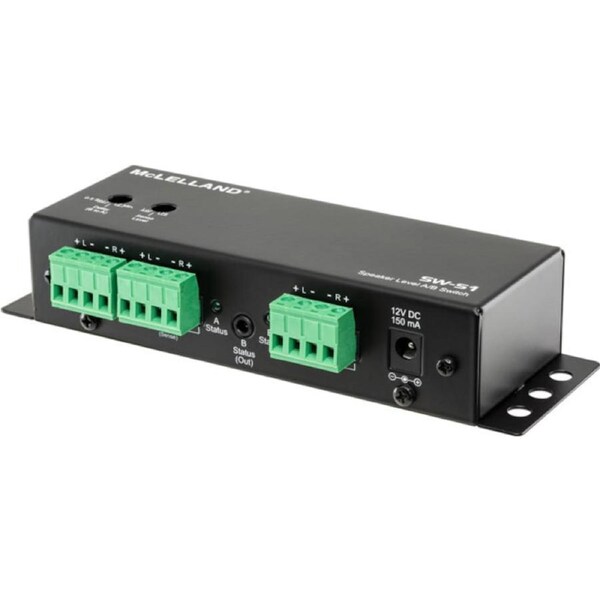

MCLELLAND Speaker Level Audio Ab Switch

Features

• Automatically switches the signal to stereo speakersbetween two power amplifiers.

• Dual Relays handle music power Levels up to 150 Watts.

• Delay Switch allows setting the Delay time from 0.5 Seconds to 2 Minutes to
• change the music automatically.

• Sense Level allows the adjustment of sensitivity to the desired Threshold.

• A/B Status LED indicate the music plays from Input A or Input B.

• B Status 3.5mm Output Jack provides 12VDC Trigger to local devices (Lighting,Shades, etc.).

• Isolated independent ground allows use of BTL (Bridged) Amplifiers.

• External power supply included

• Mounting hole for easy installation.

Specifications

• Delay Range: (0.5-2) Sec, to 2 Min

• Sensitivity Range: 30mV to 300mV

• Max, Music Power Handling: 150Watts

• Independent Grounds: for BTL Amps

• Dual Relays Contact Rating: 24V@2A

• B Status Output Voltage: 12V DC @10mA/9V DC @100mA Max.

• Power Requirements: 12V DC@150mA

• Power Jack: 2.1mm ,center pole positive

• Dimensions (WxDxH): 6.5" x 2.35" x 1.25" (165 x 60 x 32 mm)
