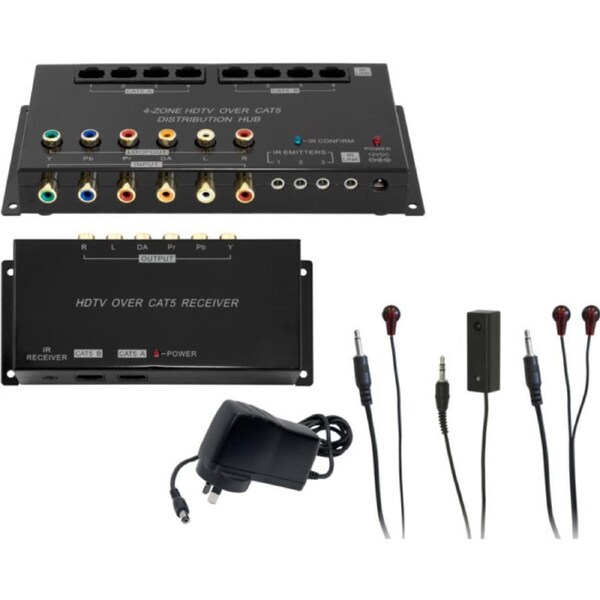

PRO2 4 Zone Hdtv + Ir Over Cat5 Distribution Hub

Features

The PRO1247D allows you to extend component video, coaxial digital audio, stereo audio and IR signals to 4 different zones (expandable up to 8 with loop out function) using economical CAT5e cable.

Your source AV device (beg. DVD player) connects to the distribution hub and a 2 CAT5e cable connection is made to the receiver which is connected to your display device (beg.TV).

Features:

• Four zone Audio/ Video + IR distribution
• Loop out function
• Send HD video and audio signals up to 120 metres
• Transmit IR signals to remotely control AV devices
• IR confirmation and power LED
• Supports 480p/ 1080i
• Both distribution hub and receiver can be wall mounted(screws included)

Specifications

Connections:

• Distribution hub:
  • 8x RJ45 ports
  • YPbPr video input (3x RCA)
  • Coaxial digital audio (DA) input (1x RCA)
  • Stereo audio (L/ R) input (2x RCA)
  • 3x IR emitter input (3.5mm jack)
  • 2x IR link connector (3.5mm jack)
• Receiver:
  • 2x RJ45 ports
  • YPbPr video output (3x RCA)
  • Coaxial digital audio (DA) output (1x RCA)
  • Stereo audio (L/ R) output (2x RCA)
  • 1x IR receiver input (3.5mm jack)

Specifications:

• Video nominal input level: 1 Volt (peak to peak)
• Video input impedance:
  • Distribution hub: 75 ohm
• Video output impedance:
  • AV CAT5 receiver: 75 ohm
• Audio input impedance:
  • Distribution hub: 47k ohm
• Audio output impedance:
  • AV CAT5 receiver: 300 ohm
• Power: 12V DC 1.2A switching power
• Weight:
  • Distribution hub: 460gr
  • Receiver: 310gr
• Dimensions:
  • Distribution hub: 195 (W) x 87 (D) x 27 (H) mm
  • Receiver: 158 (W) x 67 (D) x 31 (H) mm

Kit Contents

Kit includes:

• Distribution hub
• Receiver
• Dual band IR receiver
• Single IR emitter
• Dual IR emitter
• 12V DC 1.2A switch-mode power supply
• 8x screws for mounting
• Instructions

Installation & Tips

Tips

Installation diagram
