PRO2 Audio Video And Component + Ir Cat5 Extender Kit Suit Clipsal

Features

The PRO1254D is part of the "PRO2 CAT5 Extender Series". The Clipsal-style design means it matches your existing wall plates, for that fully integrated look! The PRO1254D reduces the cost and number of cables by transmitting just about all the analoguevideo and audio signals you could need, and with Foxtel iQ2 compatible IR return, you won't have to splash-out for an additional IR extender kit!

Distributes your AV signals via dual economical, standard Cat5e Patch cables up to 300m for basic Composite and Components AV signals, and up to 150m for 720p/1080i anddigital coaxial signals, ensuring high quality video and audio transmission without costly repeaters and expensive cabling.

Features

• Video and audio transmission up to 300m over 2x Cat5e UTP Patch cables
• Component video connections (Y/Pb/Pr)
• Coaxial Digital connection
• Composite / CVBS Video connection
• Analogue audio connection (L+R)
• Foxtel iQ2 Compatible IR Return
  • IR Target/receiver and emitters included!
  • Works in areas with compact fluorescent lighting
  • Blue IR confirmation LED
  • Self-adhesive tape for quick and easy fixing on any flat surface
  • IR Receiver/target has 3 metre lead for mountingin virtually any convenient location
• No power required for Video / Audio transmission
  • Only IR return requires power

Specifications

Transmitter

• Component video inputs (Y/ Pb/ Pr)
  • 3x RCA sockets (Green/Blue/Red)
  • Impedance: 75Ohm unbalanced
  • Bandwidth: DC~12 MHz
• Coaxial digital audio input
  • 1x RCA socket
  • Impedance: 600Ohm unbalanced
• Composite video input
  • 1x RCA socket (Yellow)
  • Impedance: 75Ohm unbalanced
  • Bandwidth: DC~12 MHz
• Audio Left & Right inputs
  • 2x RCA sockets (White/Red)
  • Impedance: 600Ohm unbalanced
  • Bandwidth: 50 Hz~15 kHz
• 2x 3.5mm jacks for IR emitters
• Interface:
  • 2x Cat5e RJ45 Jacks on rear
  • Impedance: 100Ohm balanced

Receiver

• Component video inputs (Y/ Pb/ Pr)
  • 3x RCA sockets (Green/Blue/Red)
  • Impedance: 75Ohm unbalanced
  • Bandwidth: DC~12 MHz
• Coaxial digital audio input
  • 1x RCA socket
  • Impedance: 600Ohm unbalanced
• Composite video input
  • 1x RCA socket (Yellow)
  • Impedance: 75Ohm unbalanced
  • Bandwidth: DC~12 MHz
• Audio Left & Right inputs
  • 2x RCA sockets (White/Red)
  • Impedance: 600Ohm unbalanced
  • Bandwidth: 50 Hz~15 kHz
• 2x 3.5mm jacks for IR emitters
• Interface:
  • 2x Cat5e RJ45 Jacks on rear
  • Impedance: 100Ohm balanced

IR Receiver

• Receive frequency range: 34 kHz to 40 kHz
  Emitter frequency: 38 kHz
• Range
  • On Axis - 16.8~24.4m (55ft to 80 ft)
    30o Off Axis - 9.1~16.8m (30ft to 55ft)
• Power: 12VDC / 31mA max
• Dimensions: 54L x 14W x 13H mm
• Weight: 23 g

System

• Distance: Over Category 5e/6 UTP cable:
  • 720p video, up to 150 metres (total length, device-to-device)
  • 1080i video, up to 150 metres (total length, device-to-device)
  • Digital Audio: up to 175 metres (total length, device-to-device)
• Interface:
  • 2x UTP Cat5e/6 Patch Lead
• Dimensions:
  • Overall: 114 x 70 x 42mm (including cover plate)

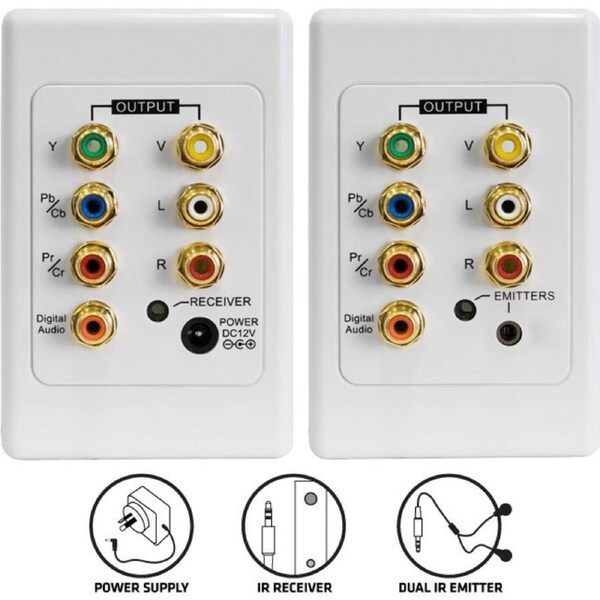

Kit Contents

Kit includes:

• 1x Transmitter wall plate
• 1x Receiver wall plate
• 1x Dual IR emitter
• 1x IR receiver stick
• 1x Power supply: 12VDC / 200mA

Images

Basic Configuration
Advanced Configuration

Click on thumbnail for larger image
