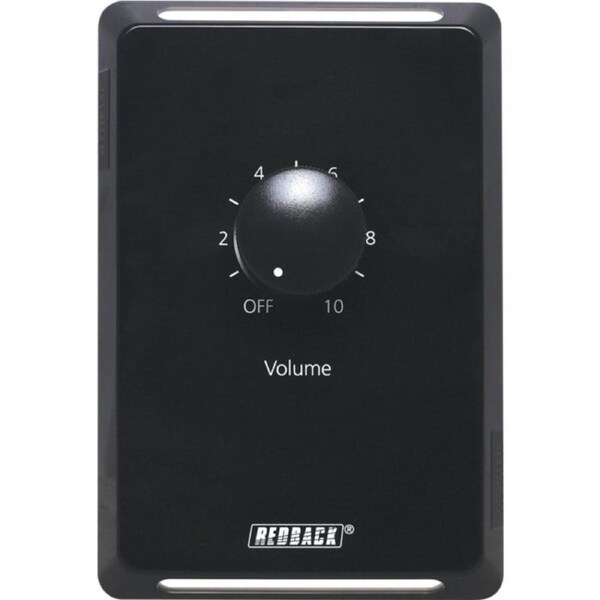

REDBACK 40W 100V Volume Control Vertical Black

REDBACK 40W 100V LINE VOLUME CONTROL VERTICAL BLACK

This 40W volume control is designed for 100V line speaker systems.The volume control is fitted to a black Clipsal Pro Series wall plate which has been specifically designed for commercial building installations.

FEATURES

• 11 position switches for fine adjustment of sound level
• All circuitry is housed on a PCB with screw terminals for easy installation
• Override relay for emergency paging application
• 22 F bipolar capacitor for line monitoring purposes
• Normal and failsafe mode onboard switch selection

With the switch in the Normal position energising the override relay (24V DC to the 24V DC terminal) bypasses the controller. Full input power is directed to the speaker load. De-energising the override relay configures the unit to normal level control function. With the switch set to the Failsafe position energising the override relay is necessary for normal level control function. De-energising the override relay bypasses the controller. That is, full power is directed to the speaker load.

ABOUT CLIPSAL PRO SERIES WALLPLATES

The Clipsal Pro series has been specifically designed for commercial building installations and is the new standard for retail, offices, schools and public spaces. The secured fascia plate can only be removed with a tool preventing tampering and accidental removal due to impact etc. Available in white and black, the switches and sockets will blend into any commercial environment.

WIRING DIAGRAM
