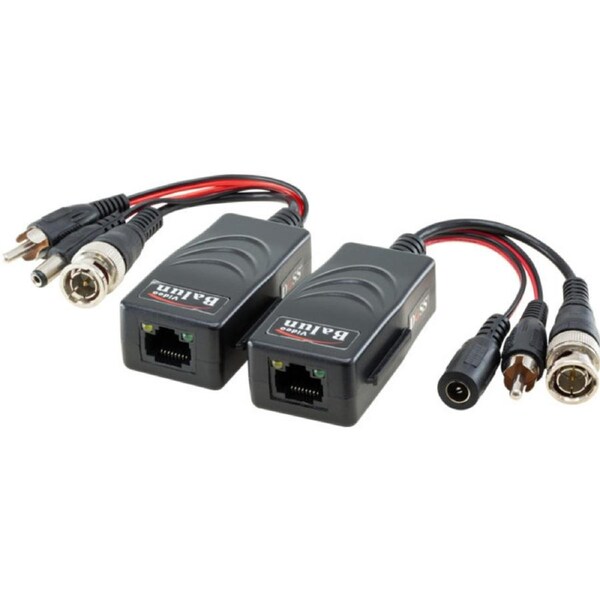

DOSS Cctv Video+Audio+Power Hdbalun Passive Up To 200M Hd
Features
The VPAB45HD is a passive (non-amplified) device that allowsthe transmission of real-time CCTV HD video, power and audiosignal via one cost-effective Unshielded Twisted Paired (UTP) cable. Based band (composite) signals of any type are supported. Used in pairs, VPAB45HD eliminates costly and bulky coaxial cable, allowing live CCTV colour HD video, power and audio signal up to 200m. The superior interference rejection and low emissions of theVPAB45HD allow HD video signals to coexist in the same wire bundle as telephone, datacom or low-voltage power circuits. This allows the use of a shared or existing cable plant. It has built in surge suppressor to protect video equipment against damaging voltage spike. Its crosstalk and noise immunity ensure quality video signals.
It is compatible with allHD-TVI, HD-CVI and AHD analog cameras.
Features
- Compatible with allHD-TVI, HD-CVI and AHD analog cameras
- 1-CH Passive Video, Power & Audio Transceiver (12/24V DC/AC)
- Transmit power signal up to 200m in pairs
- Colour video up to 400m via UTP cat5e/6 cable
- Audio signal up to 600m in pairs
- NTSC, PAL & SECAM video format compatible
- Real-time transmission
- RJ45 Jack for UTP cat5e/6 cable
- BNC plug with extended mini-coax pigtail
- No power required
- Exceptional interference rejection
- Built-in Transient Voltage Suppressors for surge protection
- Lighting protection design Grade: III
- 50 db crosstalk and noise immunity
- Wave Filter Design, Anti-Static Design
- Compact size and easy installation
- ABS engineering plastic housing
Applications
- Security Monitoring System
- Multimedia Network Teaching System
- Medical Monitoring Display System
- Industrial Automation Control System
- Banking, securities, financial information display system
- Remote Network Server Monitoring
- Department Store Security
- Casino Security
- Hospitals, Airports and banks
- School Campuses
Specifications
Model |
VPAB45HD |
|
Product Name |
Single Channel Passive HD Video, Audio and Power Transceiver |
|
AppliedDevices |
CCTV cameras, monitors, DVR, switchers, IP encoders, and other CCTV equipment |
|
Video |
Video Format |
PAL, NTSC, SECAM |
Operating Frequency |
DC to 6 MHz |
|
Max Distance |
UTP Category 5e (24AWG)Color: 400mB&W: 600m |
|
Common-mode/Differential-mode rejection |
15 KHz to 5 MHz60 dB typ |
|
Impedance |
Coax, BNC Plug75Ohm unbalancedUTP, RJ45100Ohm balanced |
|
Attenuation |
1.5 dB typ Max |
|
WireType |
Network Wiring |
One Unshielded Twisted Pair (for each video signal)24-16 AWG (0.5-1.31mm) |
Category Type |
2or better |
|
Impedance |
100 20 ohms |
|
DC Loop Resistance |
18 ohms per 100m |
|
Differential Capacitance |
62 pF/m max |
|
Power |
Power Input |
No external power required |
Power transmission |
12V/24V, DC/AC, up to 200m via UTP cat5e/6 |
|
Audio signal |
Transmission distance |
Up to600mvia UTP cat5e/6 |
Connector |
Video input/output |
BNC plug connector |
Videoinput/output |
RJ45 Jack |
|
Protection |
Surge Protection |
renewable solid state surge protection |
Video Input |
2KV(common mode), 10/700us IEC6100-4-5/1955(GB/T 1726, 5-1999) |
|
Video Output |
2KV(different mode), 10/700us IEC6100-4-5/1955 (GB/T 1726, 5-1999) |
|
Mechanical
|
Housing |
ABS engineering plastic |
Body Color |
Black |
|
Dimensions (L*W*H) |
60.4*29*20.4mm(BNC connector & cable excluded) |
|
Net Weight |
65g |
|
Environmental
|
Operating Temperature |
-20o~70oC |
Relative Humidity |
0~95% (non-condensing) |
|
Storage Temperature |
-40o~150oC |
Downloads
