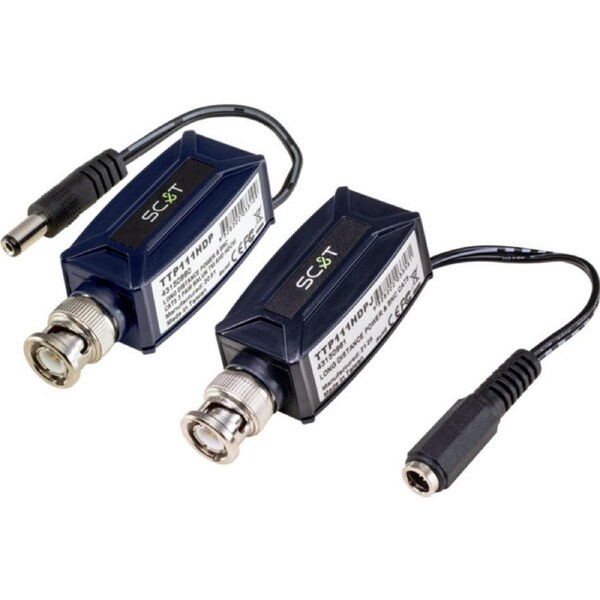

Video Power Cat5 Transceiver Tvi Ahd Cvi Cvbs Balun Long
Features
- Transmit HD-TVI/AHD/HDCVI/CVBS video and power(3 pairs)over one CAT5ecable.
- Include 2 units: 1 x RJ45 to BNC with DC power plug, 1 x RJ45 to BNC with DC power jack.
- Eliminate coaxial & power cable.
- Fast, easy installation, saving time and money.
- Substantial saving on the cost of the cable itself.
- Built-in ESD, EFT(impulse noise), and transient protection
- Transmission distance: 1080P: HD-TVI 250M, AHD 250M, HDCVI300M
4M/5MP/4K: HD-TVI200M, AHD 200M, HDCVI200M CVBS: 400M
Specifications
ITEMNO. |
TTP111HDP |
TTP111HDPJ |
Video Input / Output Terminals |
BNC x 1 (1 Vp-p,75 Ohm) |
|
Video Onput / Iutput Terminals |
RJ45 x 1 ( 100 Ohm ) |
|
Power |
DC-PLUG |
DC-JACK |
Bandwidth |
50Hz ~ 60MHz ( -3dB ) |
|
Transmission Distance |
1080P: HD-TVI 250M, AHD 250M, HDCVI300M |
|
ESD protection |
30 KV(Air),15 KV (Contact) ; IEC 61000-4-2 compliant |
|
EFT protection |
40A(5/50ns) ; IEC 61000-4-4 compliant |
|
Lightning protection |
2A (8/20us) ; IEC 61000-4-5 compliant |
|
Surge Protection Attack Time |
< 1 nS |
|
Environmental Specifications |
Operation: 0 to 55oC, Storage: -20 to 85oC, Humidity: up to 95% |
|
Dimension mm |
69 x 25 x 20.7 + 140mm power cord |
|
Weight g |
37 g |
