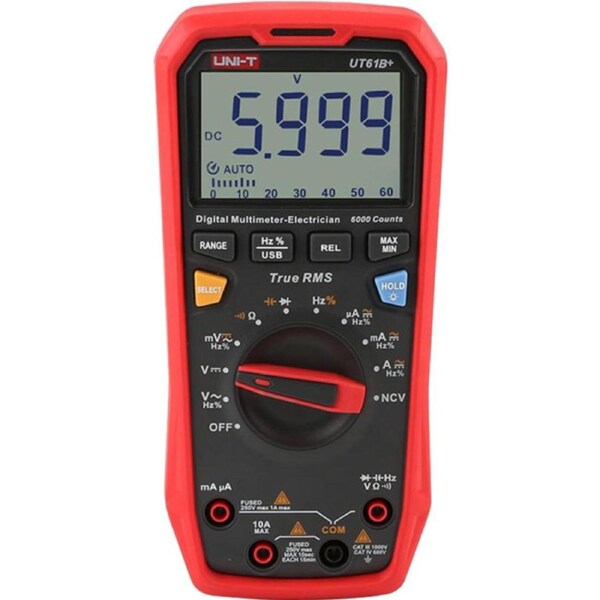

UNI-T Modern Digital Multimeter W/Usb True Rms 1000V
With the USB connection, you can export the test results to your PC in Excel file.
Features
- True RMS
- Data hold/backlight
- Max/Min/Relative mode
- USB communication
- Input protection
- Diode/continuity test
- NCV Non-Contact Voltage (audible/visual alarm)
Specifications
| Specifications | Range | UT61B+ |
| Safety ratings | CAT III 1000V/CAT IV 600V | |
| AC voltage (V) | 1000V | (1%+3) |
| DC voltage (V) | 1000V | (0.5%+3) |
| AC current (A) | 10A | (1.2%+5) |
| DC current (A) | 10A | (1%+2) |
| Resistance (Ohm) | 60MOhm | (1%+2) |
| Capacitance (F) | 60mF | (3%+5) |
| Frequency (Hz) | 10MHz | (0.1%+4) |
| Duty cycle (%) | 0.1%~99.9% | (2%+5) |
| Display count | 6000 | |
| Bandwidth (Hz) | 40Hz~500Hz | |
| Analog bar | 31 | |
General Characteristics |
||
| Power | 1.5V battery (R03) x 4 | |
| Product net weight | 350g | |
| Product size | 190mm x 90mm x 50mm | |
| Standard accessories | Battery, gold plated test leads, USB cable, English manual | |
| Standard individual packing | Gift box, cloth bag | |
| Standard quantity per carton | 20pcs | |
| Standard carton measurement | 480mm x 370mm x 365mm | |
| Standard carton gross weight | 15.2kg |
Ship out the order within 24-48 hours.
Estimated Delivery Time Frame: 2 - 15 business daysChange of mind:
Customer can return the item if purchased by mistake within 14 days of the customer’s order being received.
Change of mind returns will only be eligible for a refund on the product’s sale price within receiving the item'. Return postage is paid by the customer.
