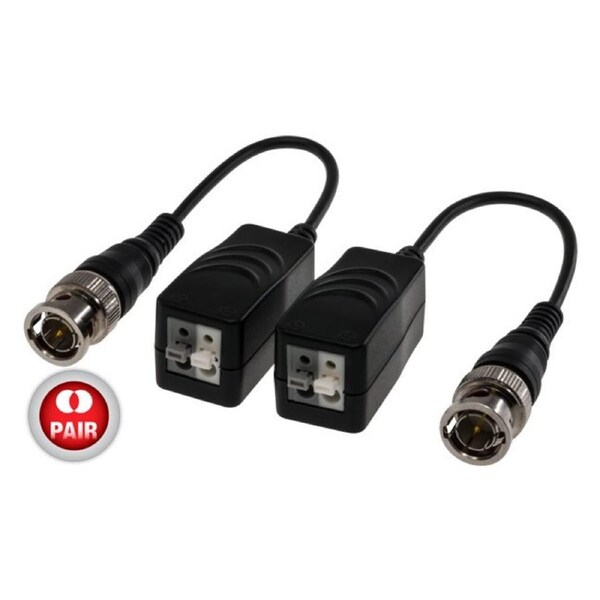

DOSS Mini Passive Bnc Balun Push Pin Terminal Hd Version
Features
Features
The BVB4201PLHD video balun is a passive (non-amplified) device that allows the transmission of real-time CCTV video signal via cost-effective Unshielded Twisted Paired (UTP) cable. Baseband (composite) signals of any type are supported. It is compatiable with all HD-TVI, HD-CVIand AHD analoge camera.
The BVB4201PLHD has a mini-coax pigital lead which allowsquick mounting onto fixed cameras and in-camera mounting in most dome cameras. Push-pin terminal block allows tool-less connection of UTP cable output. Used in Pairs, the BVB4201PLHD eliminates costly and bulky coxial cable.
The superior interference rejection and low emissions of the BVB4201PLHD allow video signals to coexist in the same wire bundle as telephone, datacom, or low-voltage power cirucuits. It has buit-in surge suppressor to protect video equipment against damaging voltage spikes.
Which is the best cable to work with?We recommend to use it with Unshielded Twisted Paired (UTP) wiring from 24AWG through 22AWG. Individually shielded pairsshould be avoided as they reduce the operating range of the systems drastically.
Features
- Real-time transmission over UTP cat 5e/6
- No power required
- Compatible with NTSC, PAL & SECAM video format
- Compatible with all HD-TVI, HD-CVI, AHD & CVBS analog cameras
- HD-CVI 720P: 440m, 1080P: 220m over UTP cat5e/6
- HD-TVI 720P: 190m, 1080P: 190m over UTP cat5e/ 6
- AHD 720P: 300m, 960P: 240m, 1080P: 220m over UPT cat5e/ 6
- BNC plug with extended 150mm mini-coal pigtail
- Reliable tool-less UTP push-pin terminal block
- Built-in TVS (Transient Voltagae Suppressor) for surge protection
- Wave Filter Design, Anti-Static Design
- Lightning protection design Grade: III
- 60 dB crosstalk and noise immunity
- Exceptional interference rejection
- ABS engineerig plastic housing
Application
- Security monitoring system
- Multimedia network teaching system
- Medical monitoring display system
- Industrial Automation control system
- Banking, securities, financial information display system
- Remote network server monitoring
- Department store security
- Casino security
- Hospitals Airport and banks
- School/ campus
Specifications
| Applied Devices | CCTV cameras, monitors, DVR, switchers, IP encoders, and other CCTV equipment | ||
| Video | Video Format | PAL, NTSC, SECAM | |
| Operating Frequency | DC to 42MHz | ||
| Max Distance | HD-TVI720P: 190m | HD-CVI720P: 440m | AHD720P: 300m |
| HD-TVI 1080P:190m | HD-CVI 1080P: 220m | AHD960P: 240m AHD 1080P: 220m |
|
| Common-mode/Differential-mode rejection | 15KHz to 42MHz60 dB type | ||
| Impedance | Coax, Male BNC75Ohm unbalanced | ||
| UTP, two push-pins100Ohm balanced | |||
| Attenuation | 1.5 dB typ Max | ||
| Wire Type | Network Wiring | One UnshieldedTwisted Pair (for each video signal) 24-16 AWG (0.5-1.31mm) | |
| Category Type | 2 or better | ||
| Impedance | 100 20 ohms | ||
| DC Loop Resistance | 52 ohms per 1,000ft (18 ohms per 100m) | ||
| Differential Capacitance | 19 pF/ft max (62 pF/m max) | ||
| Power | No external power required | ||
| Connector | Video input/ output | Male BNC connector | |
| Videoinput/ output | Tool-less Push-pin terminal block | ||
| Protection | Surge Protection | renewable solid state surge protection | |
| Video Input | 2KV(common mode), 10/700us IEC6100-4-5/1955(GB/T 1726, 5-1999) | ||
| Video Output | 2KV(different mode), 10/700us IEC6100-4-5/1955(GB/T 1726, 5-1999) | ||
| Mechanical | Housing | ABS engineering plastic | |
| Body Color | Black | ||
| Dimensions(L*W*H) | 38.4*18.6*19.5mm (BNC connector excluded) | ||
| Net Weight | 40g | ||
| Environmental | Operating Temperature | -20oC~70oC | |
| Relative Humidity | 0~95% (non-condensing) | ||
| Storage Temperature | -40oC~150oC |
