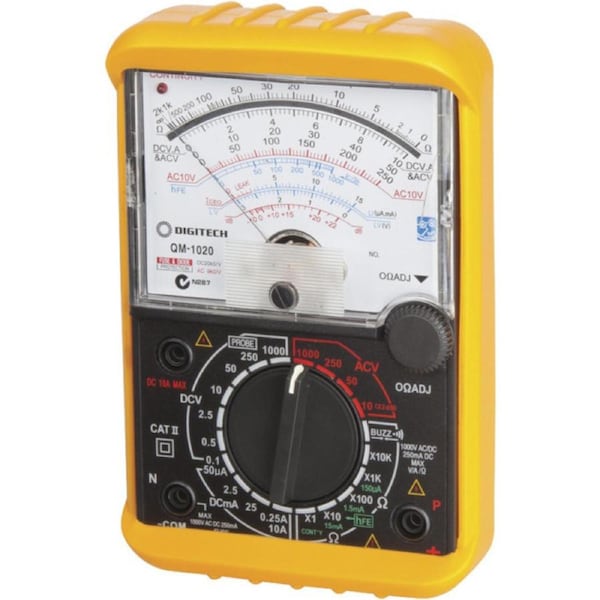

Analogue Multimeter Amm

• Features:
• 20,000 Ohm /V DC Sensitivity
• Transistor test
• Continuity buzzer
• Fused and diod protected
• This well made meter is great for those who prefer theanalogue meter movement to the digital.
• It has several`digital' features, like a 10 amp DC current measuring capability a continuity buzzer and safety shroudedprobes.


• Specifications-

• DC Voltage: 0-100mV, 500mV, 2.5V, 10V, 50V, 250V &1000V,10,000
• Ohm /V 3%
• AC Voltage: 0-10V, 50V, 250V & 1000V 9,000/V 4%
• DC Amps: 0-50uA, 2.5mA, 25mA, 250mA & 10A
• Voltage drop =250mV 3% FS- Resistance : 0.2(approx) - 2K, 20K 200K 2M & 20M-
• Continuity: Internal Buzzer- dB: -10 to +22dB (AC 10V scale)-
• Transistor Test: Leakage (ICEO) 0-150uA, 1.5mA, 15mA & 150mA. -hFE 0-1000 (needs external equipment)-
• Size: 100(W) x 150(L) x 36(D)-
• Power: 1x9V, 2xAA (supplied)-
• Test leads included
• Now includes rubber holster.
