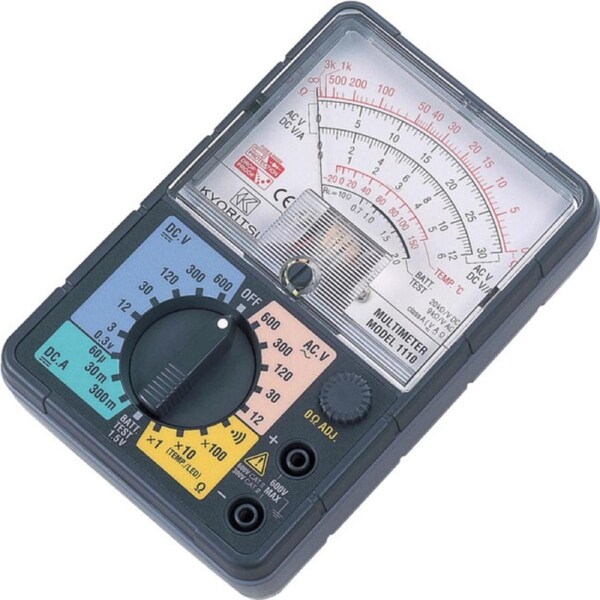

KYORITSU Kyoritsu Analogue Multimeter
Kyoritsu 1110 Analogue Multimeter 300mA dc 600V ac/dc
* High sensitivity DC20kOhm/V.
* 1m drop-proof heavy duty designed taut-band movement.
* Can measure line voltage up to AC 600V.
(Voltage to ground MAX AC300V)
(Protected by 600V ceramic fuse against accidental overload)
* Continuity buzzer, battery check, LED check function.
* Skeleton type robust and clear case
with carrying handle furnished as standard accessory.
| DC V | 0.3V (16.7kOhm/V) 3% of FS 3/12/30/120/300/600V (20kOhm/V) 3% of FS |
|---|---|
| AC V | 12V (9kOhm/V) 4% of FS 30/120/300/600V (9kOhm/V) 3% of FS |
| DC A | 60uA/30/300mA 3% of FS |
| Ohm | 3/30/300kOhm 3% of scale length |
| Continuity buzzer | Buzzer sounds below 100Ohm |
| Battery Test | 1.5V (0.7 - 2V) 3% of FS (10Ohm load) |
| Temperature | Note: The MODEL1110 includes a temperature measurement scale, but it is not available for new customers due to thediscontinue of the Temperature Probe 7060. |
| LED | 10mA approx. at 0 Ohm (at 3V of battery voltage) |
| Applicable standards | IEC 61010-1 CAT III 300V Pollution Degree 2 CAT II 600V Pollution Degree 2 IEC 61010-2-031 |
| Power source | R6 (AA) (1.5V) x 2 |
| Dimensions | 140(L) x 94(W) x 39(D) mm |
| Weight | 280g approx. |
| Included Accessories | 7066A (Test leads) 8923 (F500mA/600V fuse) x 2 9103 (Carrying case) R6 (AA) x 2 Instruction Manual |
