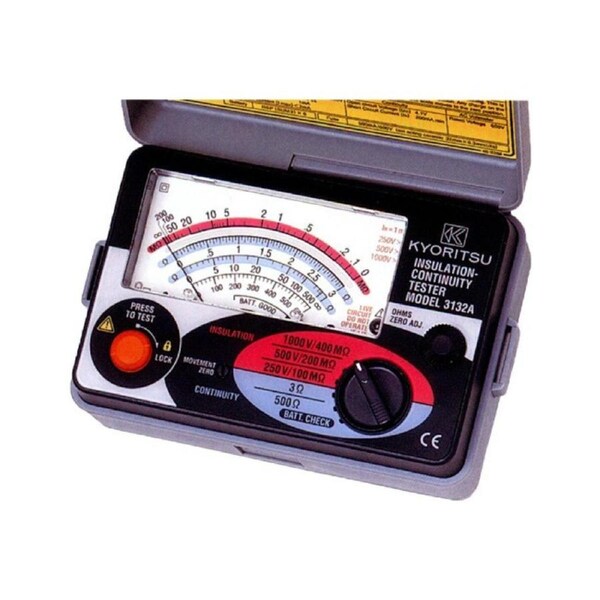

KYORITSU Analogue Insulation Tester / Continuity Tester - Kyoritsu
Analogue Insulation / Continuity Tester
Kyoritsu 2010 Insulation Tester Product Selection Guide (412kb PDFfile)
FEATURES:
- Dust and drip proof construction. (designed to IEC60529 IP54)
- Designed to meet IEC61010-1 and IEC61557 safety standard
- 1mA rated test current at the minimum resistance
- 200mA measuring current on continuity testing
- Automatic discharge of circuit capacitance
(Any charge stored in the circuit under test will be automatically discharged after testing.) - Live circuit warning buzzer and neon lamp
- Small and lightweight. Shock resistant new case material
- AC voltmeter with linear, easy-to-read scale
- Operates on AA, R6Px6 dry batteries
SPECIFICATIONS:
| Insulation Resistance | |
| Test Voltage | 250V/500V/1000V |
| Measuring Ranges (Mid-scale Value) |
100MOhm/200MOhm/400MOhm (1MOhm) (2MOhm) (4MOhm) |
| Output Voltage on open circuit |
Rated test voltage+20%, -0% |
| Nominal Current | 1mA DC min. |
| Output Short Circuit Current |
1~2mA DC |
| Accuracy | 0.1~10MOhm/0.2~20MOhm/0.4~40MOhm (Accuracy Guaranteed Ranges) 5% of indicatedvalue |
| Continuity | |
| Measuring Ranges (Mid-scale Value) |
3Ohm/500Ohm (1.5Ohm)/(20Ohm) |
| Output Voltage on open circuit |
4.1V DC approx. |
| Measuring Current | 210mA DC min. |
| Accuracy | of scale length |
| AC Voltage | |
| AC Voltage | 0~600V AC |
| Accuracy | scale length |
| General | |
| Safety Standard | IEC61010-1 CAT.III 600V Pollution Degree 2 IEC61010-2-031 IEC61557-1/2/4 |
| IP Rating | IEC60529-IP54 |
| EMC Standard | IEC61326-1 |
| Withstand Voltage | 3700V AC for 1 minute |
| Power Source | R6P(AA)(1.5V) x 6 |
| Dimensions | 106(L) x 160(W) x 72(D)mm |
| Weight | 560g approx. |
| Accessories | 7122(Test leads) Pouch for test leads 8923(F500mA/600V fuse) x 2 R6P(AA) x 6 Shoulder Strap Instruction Manual |
