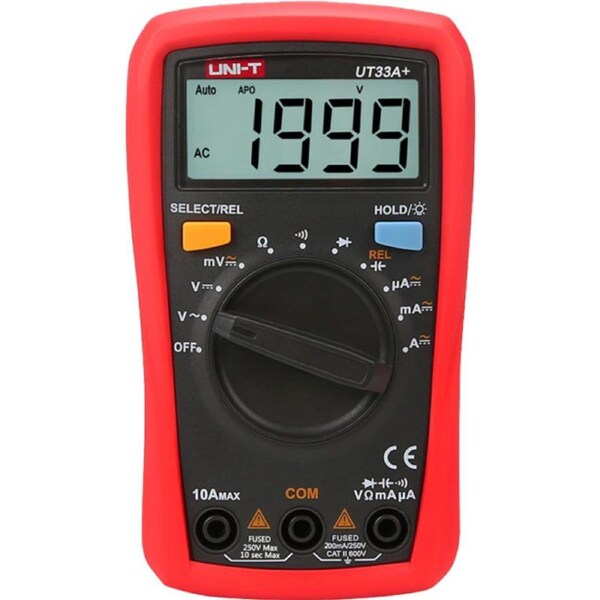

UNI-T Palm Size Digital Multimeter Auto-Ranging
UT33A+ Palm Size Multimeter
The new generation UT33+ series redefines the performancestandards for introductory digital multimeters. Our innovative industrial design makes sure that these products can withstand 2 meters drop. The new LCD display layout provides a better user experience. The UT33+ series safety standards have also been enhanced to ensure that users can work safely in CAT ll 600V environment.
Main features
- LCD display
- Equipped with comfortable protective cover, test lead hanging slot
- 2m drop proof with precision protection
- Auto power off
- Auto backlight off
- Loud buzzer
- Ergonomically designed rotary switch
Specification
| Specifications | Range | Accuracy |
| UT33A+ | ||
| DC voltage (V) | 200.0mV~600V | (0.5%+3) |
| AC voltage (V) | 200.0mV~600V | (0.7%+3) |
| 200.0V~600V | ||
| DC current (A) | 200.0uA~10.00A | (1.0%+3) |
| AC current (A) | 200.0uA~10.00A | (1.2%+3) |
| Resistance (O) | 200.0O~200.0MO | (1.0%+2) |
| 200.0O~20.00MO | ||
| Capacitance (F) | 2.000nF~2.000mF | (3%+5) |
| Features | ||
| Max display | 1999 | |
| Auto power off | v | |
| Auto backlight off | v | |
| Diode test | v | |
| Continuity buzzer | v | |
| Drop test | 2m | |
| Test probe holder | v | |
| Safety rating | CAT ? 600V | |
| Range selection | Auto | |
| Battery test | ||
| Temperature (oC/oF) | ||
| NCV | ||
| General Characteristics | ||
| Power | AAA battery (zn-mn) 1.5Vx2 | |
| LCD size | 66mm*51mm | |
| Product color | Red and grey | |
| Product net weight | 473g | |
| Product size | 131mmx95mmx58mm | |
| Standard accessories | Test lead, manual | |
| Standard individual packing | Gift box, manual | |
| Standard carton measurement | 640mmx310mmx350mm |
