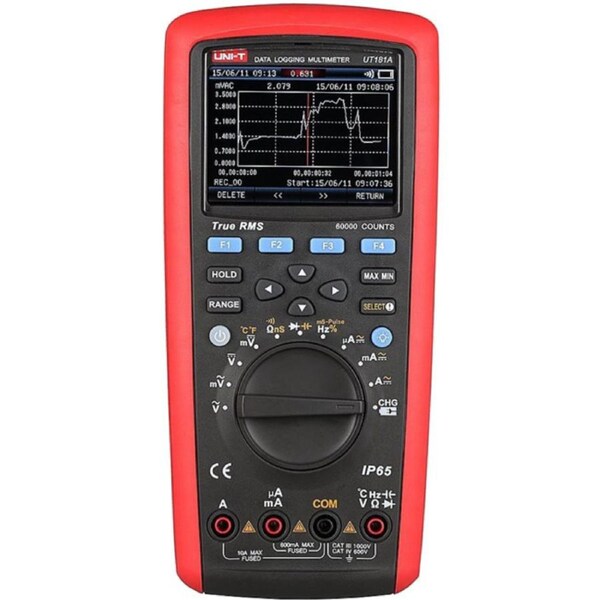

UNI-T Rms Datalogging Multimeter
Features
- Trend capture function: can be a long time to monitorand record the signal change process and form a trend chart for comparison
- Higher extended storage 20,000 recorded data
- Data filtering function: can set upper and lower values of any gear and the measured object is compared, and there is an overproof alarm
- Provide more data, multiple readings can be displayedon the screen
- Double temperature measurement: intuitive and real-time temperature contrast, improve work efficiency
- Low pass filtering: can be used for the measurement of inverter and motor drives
- IP65 waterproof, dust should be used for: humid environment and dusty environment
- Powered by Li-ion: 2200mAh long endurance capacity donot replace the battery to save the cost of the purchase of battery
- True RMS 100KHZ AC frequency response
- 0.025% basic DC accuracy
- Peak hold function can record fast to 250us transient
- USB data transmission
- Design meet IEC EN61010-1 CAT IV 600V/CAT III 1000V over voltage protection, EN61010-2-030 pollution level 2 anddouble insulation safety etc; wider application range; measurement is more secure, to ensure the safety of personnel and instrumentation.
Specification
Specifications |
Range |
Best Accuracy |
Model |
UT181A |
|
DC Voltage(V) |
60mV/600mV/6V/60V/600V/1000V |
(0.025%+5) |
AC Voltage(V) |
60mV/600mV/6V/60V/600V/1000V |
(0.3%+30) |
DC Current(A) |
600uA/6000uA/60mA/600mA/10A |
(0.08%+10) |
AC Current(A) |
600uA/6000uA/60mA/600mA/10A |
(0.6%+20) |
Resistance(O) |
600O/6kO/60kO/600kO/6MO/60MO |
(0.05%+2) |
Admittance(S) |
60ns |
(2%+10) |
Capacitance(F) |
6nF/60nF/600nF/6uF/60uF/600uF/6mF/60mF |
(2%+5) |
Frequency(Hz) |
10Hz-60MHz |
(0.01%+5) |
Temperature(oC) |
-40 oC~1000oC |
(1%+30) |
Temperature(oF) |
-40oF~1832oF |
(1.5%+50) |
Features |
||
Display Count |
60000 |
|
Auto Range |
v |
|
Manual Range |
v |
|
True RMS |
v |
|
Bandwidth(Hz) |
100kHz |
v |
AC+DC |
v |
|
Low Pass Filter |
1KHz(-3db) |
v |
Dbv/dBm |
v |
|
Continuity Buzzer |
v |
|
Diode |
Around 3V |
v |
Duty Cycle |
10% ~ 90% |
v |
Dual Temperature Measurement |
T1, T2, T1-T2, T2-T1 |
v |
Data Hold |
v |
|
Peak Hold |
v |
|
Relative Mode |
v |
|
Data Logging |
20000 |
v |
Trend Capture |
v |
|
MAX/MIN/AVG |
v |
|
Data Time Display |
v |
|
Data Comparsion |
v |
|
Display Type |
3.5 Inches64K Color TFTL LCD (320*240) |
v |
Backlight Adjustment |
v |
|
Analogue Bar Graph |
v |
|
USB Interface |
v |
|
Mis-Plug Alarm |
v |
|
Battery Indication |
v |
|
Auto Power Off |
v |
|
Re-Chargeable Battery |
v |
|
Input Protection |
v |
|
Input Impedance for DCV |
=10MO |
v |
General Characteristics |
|
Power |
7.4V 2200mAh Li-ion Battery |
LCD Size |
70mm*52mm |
Product Color |
Red and Grey |
