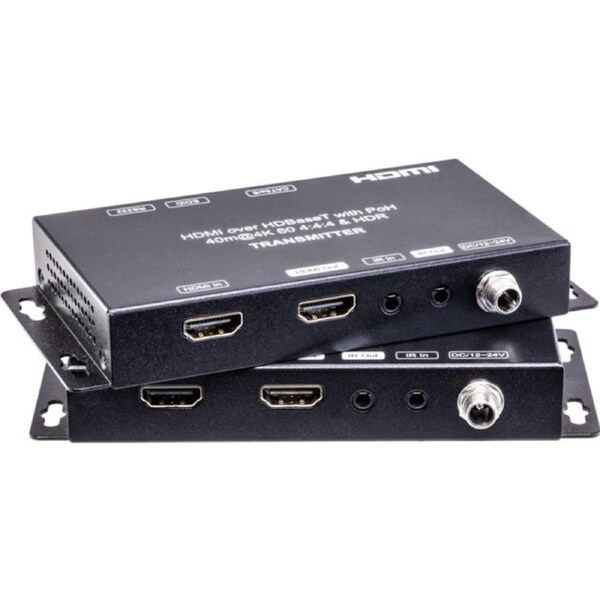

PRO2 Hdbaset Hdmi Extender 70M 4K@60Hz 4:4:4 40M 1080P 70M

HDBaseT is the only technology with the ability to distribute truly uncompressed ultra-high-definition A/V for distances of up to 100m/328ft., either point-to-point or daisy-chained, and with zero latency.? The HDBT70M can transmit the distance up to 70M for 1080P and 40M for 4K@60Hz 4:4:4 signal.

Features

• HDBaseT Technology
• Extend HDMI & IR via a signal Cat5E/6 cable
• Transmission distance up to 70M for 1080P and 40M for 4K@ 60Hz 4:4:4
• Bandwidth up to 18Gbps
• HDR10, 3D supported
• Dual POC ( Power over the cable), unit can be powered by either side, the transmitter or the receiver via the Cat5e/6 cable
• Local HDMI loopout on the transmitter
• 2x HDMI outputs on the receiver, can be used as a HDMI splitter
• HDCP2.2/1.4 compliant
• Mounting ears attached
• Bidirectional Infrared Remote supported
• Phoenix RS232 signal passthrough
• Firmware upgradable
• EDID dip switch

Specifications

• Operating Temperature Range: -10 to +55oC (14 to +131 oF)
• Operating Humidity Range: 5 to 90 % RH (no condensation)
• Input Video Signal: 0.5-1.0 volts p-p
• Input DDC Signal: 5 volts p-p (TTL)
• Video Format Supported: DTV/HDTV; 4K/1080P/1080i/720P/576P/480P/576i/480i
• Output Video: HDMI 2.0+HDCP1.4/2.2
• Output Audio: Support DTS-HD, Dolby-HD
• Maximum Transmission Distance: 70 meters for 1080P, 40 meters for 4K @60Hz 4:4:4
• Power Supply: 24V1A with lock ring
• Poc: Power from TX to RX or from RX to TX over Cat5/6 cable
• Power Consumption: 12W
• Dimensions: 139.4 mm Hx66.8mm Wx20mm D
• Weight (Main unit) : 0.54Kg / 1.19lb (Pairs)

What is in the box?

• Transmitter with the mounting ear x 1pc
• Receiver with the mounting ear x 1pc
• IR emitter x 1pc
• IR receiver x 1pc
• 24V 1A Power supply x 1pc
• Phoenix plug for RS232 x 2pcs
• User manual x 1pc
