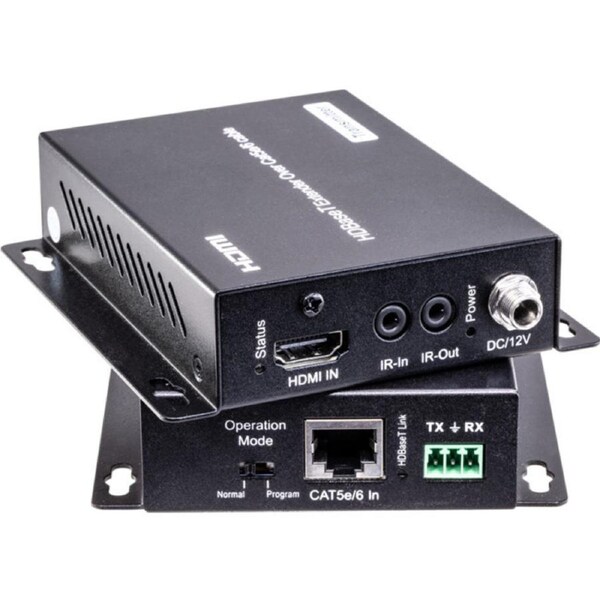

PRO2 Hdbaset Hdmi Extender 70M 4K@30Hz 40M 1080P 70M

HDBaseT is the only technology with the ability to distribute truly uncompressed ultra-high-definition A/V for distances of up to 100m/328ft., either point-to-point or daisy-chained, and with zero latency.? The HDBT70MECO can transmit the distance up to 70M for 1080P and 40M for 4K@30Hz signal.

Features

• HDBaseT Technology
• Extend HDMI & IR via a signal Cat5E/6 cable
• Transmission distance up to 70M for 1080P and 40M for 4K@ 30Hz
• POC ( Power over the cable), The receiver is powered by the transmitter via the Cat5e/6 cable.
• HDCP2.2/1.4 compliant
• LED indicators to show the power status.
• ESD protection inside the unit
• Mounting ears attached
• Bidirectional Infrared Remote supported
• Phoenix RS232 Port for firmware update or RS232 control signal transmission with an easy panel switch
• Supports CEC

Specifications

• Operating Temperature Range: -5 to +35oC (-41 to +95 oF)
• Operating Humidity Range: 5 to 90 % RH (no condensation)
• Input Video Signal: 0.5-1.0 volts p-p
• Input DDC Signal: 5 volts p-p (TTL)
• Video Format Supported: DTV/HDTV; 4K/1080P/1080i/720P/576P/480P/576i/480i
• Output Video: HDMI 2.0+HDCP1.4/2.2
• Output Audio: Support DTS-HD, Dolby-HD
• Maximum Transmission Distance: 70 meters for 1080P, 40 meters for 4K @30Hz
• Power Supply: 12V2A with lock ring
• Poc: Power from TX to RX over Cat5/6 cable
• Power Consumption: 2.5W (TX) 5W (RX)
• Dimensions: 105mm Hx71mm Wx25mm D
• Weight (Main unit) : 0.7Kg / 1.54lb (Pairs)

What is in the box?

• Transmitter with the mounting ear x 1pc
• Receiver with the mounting ear x 1pc
• IR emitter x 2pcs
• IR receiver x 2pcs
• 12V 2A Power supply x 1pc (TX)
• Phoenix plug for RS232 x 2pcs
• User manual x 1pc
