DOSS Hdmi To Sdi Converter
Features

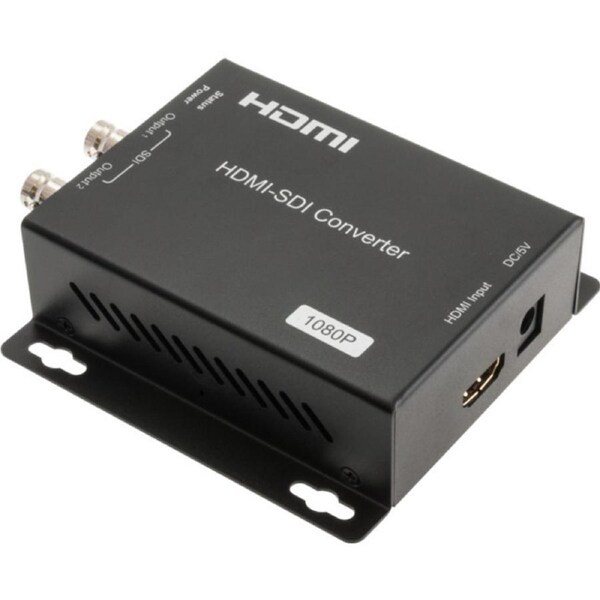

The HDMI2SDI takes Full HD HDMI video with audio and converts it to SDI for transport over up to 2x coaxial cables. This device is great for adding HDMI sources to SDI DVRs or for sending HDMI over Coax where it can then be converted back to HDMI (for example with our SDI2HDMI).
- HDMI to SDI Conversion
- Full HDMI support including embedded audio
- Distributes 1x HDMI source to 2x SDI output simultaneously
- Supported formats:
- 1080p/25
- 1080p/29.97
- 1080p/30
- 1080p/60
- Compliant HDCP
- Uses 5VDC power
Package contents
- Main Unit. HDMI -SDI converter
- DC5V 1A Power Supply
- Operating Instructions
Specifications
| Video Formats |
HDMI | 480i |
|---|---|---|
| 576i | ||
| 720p (60 / 59.94 / 50) | ||
| 1080i (60 / 59.94 / 50) | ||
| 1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) | ||
| SDI | SMPTE-425M | 1080p (60 / 59.94 / 50) |
| SMPTE-274M | 1080p (30 / 29.97 / 25 / 24 / 23.98) | |
| 1080i (60 / 59.94 / 50) | ||
| SMPTE-296M | 720p (60 / 59.94 / 50) | |
| ITU-R BT.656 | 576i (50) | |
| SMPTE-125M | 480i (59.94) | |
| Input | HDMI | |
| Outputs | 3G-SDI/HD-SDI/SDI | |
| HDMI | Standard Type A connector | |
| HDCP | HDCP Compliant | |
| Power consumption | 2.5Watts (Maximum) | |
| Dimension (LxWxH) | 95x95x29mm | |
| Operating Temperature Range | -5 to +35oC (+23 to +95oF) | |
| Operating Humidity Range | 5 to 90% RH (No Condensation) | |
| Net Weight | 245g |
