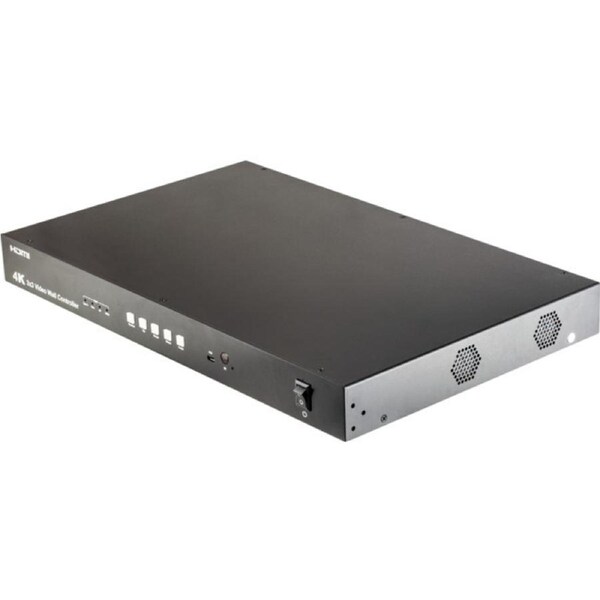

PRO2 4K 3X3 Video Wall Controller 4 Mixed Input Audio Extraction

Like the VWC22V2, this video wall controller supports 4K@30Hz.
With 9 HDMI outputs plus a loop-out, you can easily make up a 3x3 video wall, or cascade to create a max 10x10 video wall. With the USB type C, VGA, Display Port, and HDMI inputs, video sources are more flexible. 4 ways to control the video wall, Front panel, IR remote, RS232 commands, and web GUI.

Please note this video wall controller is 4K@30Hz only, not 60Hz 18Gbps.

Features

• Support the highest resolution up to 4K@30Hz 4:4:4
• Support USB-C/VGA/DP/HDMI inputs;
• Support 4K 3x3 video wall or cascade to create 3x4, 4x5, 5x6 and max 10x10 video wall;
• Support output image 180-degree rotation;
• Support EDID management; two default EDID: 4K30HZ,1080P;
• Support HDCP2.2/1.4;
• Support the panel button control, IR remote control, RS232 command, and Web GUI control;
• Support SPDIF and Analog audio extraction;
• Support third-party platform control via RS232 or Lan port;
• Micro USB port for future firmware upgrade;
• 1U rack design, easy installation;


Specifications

• Operating Temperature Range: 0 to +40oC (32 to +104oF)
• Operating Humidity Range: 5 to 90 % RH (no condensation)
• Input Video Signal: 0.5-1.0 volts p-p
• Input DDC Signal: 5 volts p-p (TTL)
• Video Format Supported: Ultra HD TV/FHDTV: 4K@30hz/1080P
• Audio Format Supported: LPCM 16bit ,24bit,44.1KHz/48KHz
• Input ports: 1xHDMI, 1xUSB TYPE-C, 1xDPx 1xVGA
• Output ports: 9xHDMIx 1xHDMI loop out
• Splitter mode: 1x9 HDMI Splitter
• Video wall modes: 1x1; 1x3; 1x4; 2x2; 2x3; 2x4; 3x1; 3x2; 3x3; 4x1; 4x2; 4x3-1; 4x3-2; 3x4-1; 3x4-2; 4x4-1;4x4-2
• Cascade video wall modes: 4x3; 4x4; 5x5; 6x6 and so on, Max 10x10 video wall
• Control Way: Panel control; Web GUI; Remote control; RS232 control
• Power consumption: 33watts (Maximum)
• Power supply: DC 24V 2A
• Dimension (mm): 438L X 274W X 44H mm
• Weight: 3620g

What is in the box?

• VWC33 x 1pc
• 24V2A Power supply x1pc
• Disc x 1pc, includes user manual and RS232 commandlist
• Remote control x 1pc
• Micro USB cable x 1pc
• Mounting ear x 1pair
• Screws x 6pcs
