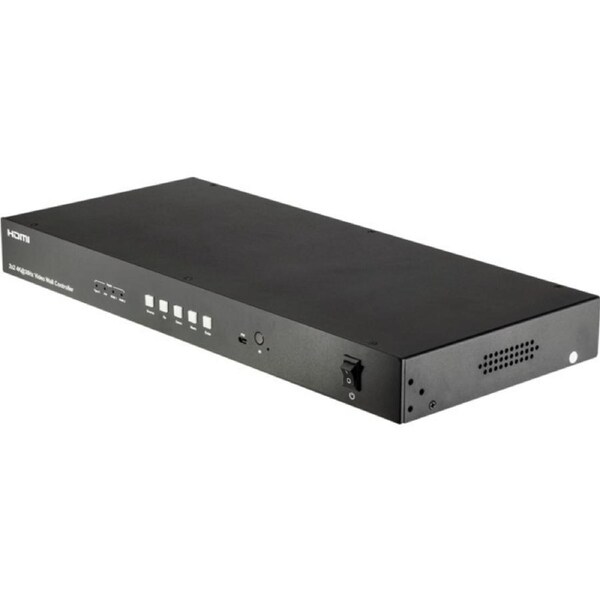

PRO2 4K 2X2 Video Wall Controller 4 Mixed Input Audio Extraction

Compared with the VWC22 video wall controller, apart fromthe main full HD to 4K@30Hz upgrade, this new model is also packed with lots of extra features. It takes more inputs like USB type C and DVI, and one extra HDMI input makes a total of 2 HDMI inputs. A loop-out HDMI output makes it easyto have a local display or cascade the video wall up to 10 x10 max. Web GUI control is now accessible, thanks to the built-in RJ45 Ethernet port.

Please note this video wall controller is 4K@30Hz only, not 60Hz or 18Gbps.

Features

• Support the highest resolution up to 4K@30Hz 4:4:4for the USB-C and HDMI inputs, 1920 x 1200 for DVI input;
• Support USB type C/DVI/ 2 HDMI inputs;
• Support 4K 2x2 video wall or cascade to create 2x3, 3x4, and max 10x10 video wall;
• Support output image 180-degree rotation;
• Support EDID management; two default EDID: 4K30HZ,1080P;
• Support HDCP2.2/1.4;
• Support the panel button control, IR remote control, RS232 command, and Web GUI control;
• Support SPDIF and Analog audio extraction;
• Micro USB port for future firmware upgrade;
• 1U rack design, easy installation;

Specifications

• Operating Temperature Range: 0 to +40oC (32 to +104oF)
• Operating Humidity Range: 5 to 90 % RH (no condensation)
• Input Video Signal: 0.5-1.0 volts p-p
• Input DDC Signal: 5 volts p-p (TTL)
• Video Format Supported: Ultra HD TV/FHDTV: 4K@30hz/1080P
• Audio Format Supported: LPCM 16bit ,24bit,44.1KHz/48KHz
• Input ports: 2xHDMI, 1xUSB TYPE-C, 1xDVI
• Output ports: 5xHDMI
• Splitter mode: 1x4 HDMI Splitter
• Preset Video wall modes: 1x1; 2x2; 4x1; 1x4; 3x2-1; 3x2-2; 4x2-1; 4x2-2; 4x3-1; 4x3-2; 4x3-3
• Cascade video wall modes: 3x3; 4x4; 4x6; 5x6; 6x6and so on, Max 10x10 video wall
• Control Way: Panel control; Web GUI; Remote control; RS232 control
• Power consumption: 15watts (Maximum)
• Power supply: DC 12V 2A
• Dimension (mm): 438L X 190W X 44H mm
• Weight: 2500g

What is in the box?

• VWC22V2 x 1pc
• 12V2A Power supply x1pc
• Disc x 1pc, includes user manual and RS232 commandlist
• Remote control x 1pc
• Micro USB cable x 1pc
• Mounting ear x 1pair
• Screws x 6pcs
