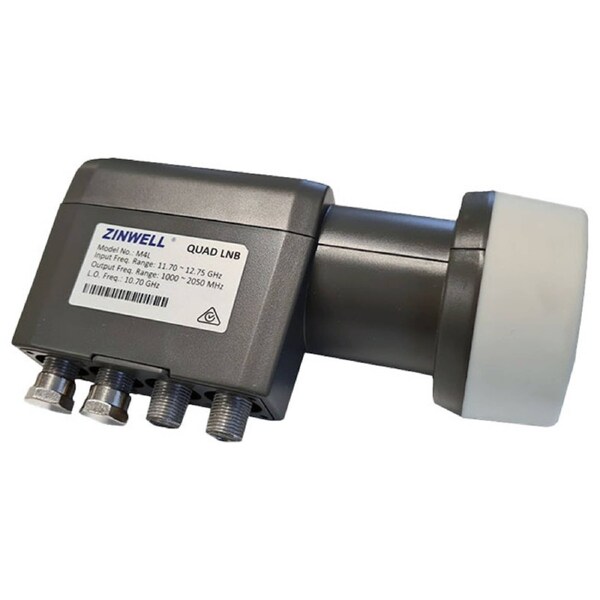

ZINWELL Quad Lnbf Offset Ku Lo 10.7Ghz Fox App F31115 (Lnbqulc)
The Zinwell low current quad output LNBF is used to connect up to 2 x PVR Foxtel or 4 standard receivers to a single dish. The LNBF is commonly used for the Foxtel and Aurora service on Optus C1 & D3, where customers need to connect multiple receivers. The Acer LNBF has a L.O. frequency of 10.7 GHz.
Specifications
| Reception Frequency | 11.70 ~ 12.75 GHz |
|---|---|
| Output Frequency | 1000 ~ 2050 MHz |
| L.O. Frequency | 10.7 GHz |
| Room Temperature: Min 56. Max 67 dB | |
| Gain Ripple | In 26 MHz Bandwidth: Max 1 dB |
| Noise Figure | Room Temperature: Typ 1.1 dB. Max 1.3 dB |
| Image Rejection | Min 40 dB |
| 1 dB Compression Point | Min 0 dB |
| 3rd Order Intermodulation | (Two Tones). Intercept Point: Min 10 dB |
| L.O. Stability | Over Temperature: Max 2.5 MHz |
| L.O. Phase Noise | @ 1 kHz offset: Max - 55 dBc/Hz @ 10 kHz offset: Max - 75 dBc/Hz @ 100 kHz offset: Max - 95 dBc/Hz @ 1 MHz offset: Max - 105 dBc/Hz |
| Output VSWR @ 75 Ohm | Max 2.0 |
| Cross-Polar Isolation | Min 20 dB. Typ 25 dB |
| Polarity Switching Voltage | Vertical: Min 10.5 V. Max 14 V Horizontal: Min 16 V. Max 19 V |
| DC Current Consumption | Input Voltage. Typ 75 mA. Max 85 mA |
| Mobile Interference Suppression | (1.8 GHz) - 15 dBm output @ monopole antenna: Max - 40 dBm |
| Feedhorn Mounting | 40 mm Standard Size |
| Operating Temperature | - 40 C ~ + 60 C |
