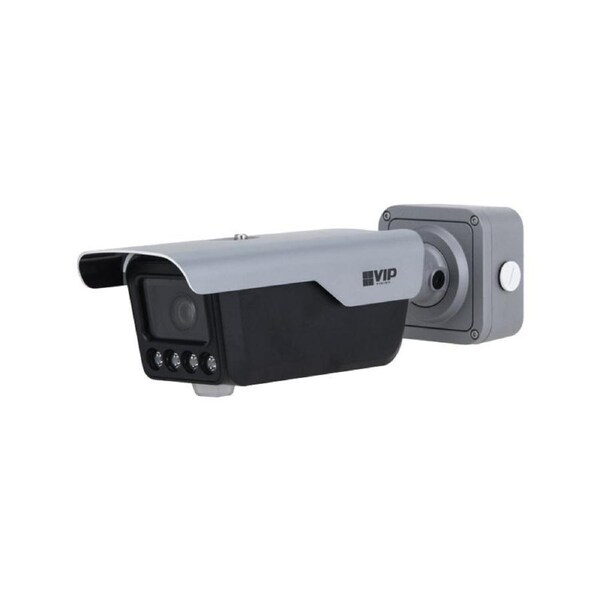

Traffic AI Series 4.0MP Motorised AI ANPR Bullet

Specially designed for number plate enhancement, Traffic AI Series number plate cameras are designed to obtain video evidence with vehicle identification in controlled environments with challenging lighting conditions. Enhanced with AI, this series has superior plate recognition compared to earlier ANPR models and additional smart features.

Product Features:

• Stream beyond HD 4.0MP (2688 x 1520) at 25fps
• Lens/Iris: 8 ~ 32mm F1.3 Motorized Varifocal Lens with Auto Iris
• Automatic number-plate recognition (ANPR)
• AI-enhanced plate capture and vehicle detection
• Edge enhancement for number plate detail & legibility
• Supports shutter speed windowing; set min/max speed
• Highlight compensation removes headlight glare
• Capture number plates for vehicles going up to 120km/h
• Identify vehicle size, colour & direction with AI
• IP67 weather & vandal resistant metal housing

Specifications

Camera

• Image Sensor : 1/1.8'' 4.0MP Progressive Scan CMOS
• Max. Resolution : 4.0 Megapixel
• Effective Pixels : 2688 (H) x 1520 (V)
• RAM / ROM : 1 GB / 4 GB
• Min Illumination : 0.001 Lux/F1.6 (Color), 0.0002 Lux/F1.6 (IR on)
• S/N Ratio : >56 dB
• Infrared System : 4 x Infrared LED, 30m range (ANPR) 60m range (video), Auto/manual on/off control

Lens

• Lens Type : Motorised Varifocal
• Lens / Iris : 8 ~ 32mm F1.3 Motorised Varifocal Lens with Auto Iris
• Field of View : Horizontal: 40°~15°, Vertical: 22°~9°, Diagonal: 47°~ 17°
• Focus : Auto / Manual / Area Focus

Video

• Resolution : 4.0MP (2688 x 1520) to CIF (352 x 288)
• Frame Rate (Main) : 4.0MP (1 ~ 25fps)
• Frame Rate (Sub) : 720p (1 ~ 25fps)
• Frame Rate (Third) : N/A
• Video Compression : H.265 / H.264M / H.264H / H.264B / H.265 / MJPEG / H .264M
• Bit Rate : H.264B / H.264M / H.264H / H.265: 2,179 kbps-13,074 kbps, MJPEG: 6,537 kbps-39,223 kbps
• Bit Rate Control : Constant bit rate (CBR) / Variable bit rate (VBR)
• Day/Night : Auto (ICR) / Color / B&W / IR filter
• Lighting Compensation : BLC / HLC / WDR (140dB)
• Smart Scene Adaptive (SSA) : Yes
• White Balance : Auto / Manual / Regional Custom / Outdoor / Natural / Street Lamp
• Gain Control : Auto / Manual
• Noise Reduction : 3D DNR
• Picture Control : N/A

IVS

• IVS : Yes
• Intelligent Functions : Number Plate Edge Enhancement, Number Plate Recognition, Video Detection, I/O Coil, Snapshot, OSD (Time, Location, Number Plate, Lane No.), Barrier Control (1ch Relay Out), Vehicle Data Structuring (Speed, Colour, Type etc.)
• Vehicle Colour Detection : Yes
• Vehicle Size Detection : Yes

Network

• Ethernet : RJ-45 (10/100/1000 Base-T)
• Protocol : HTTP; Https; 802.1x; TCP; ARP; RTSP; RTP; UDP; RTCP; SMTP; FTP; DHCP; DNS; IPv4/v6; NTP; SFTP;DDNS; SNMP; PPPoE
• Streaming Method : Unicast / Multicast
• Max. User Access : 20 Users

Interface

• Video Interface : N/A
• Audio Interface : Built-in Mic (3m Pick-up Distance) & Built-in Speaker
• Alarm Interface : 2 Input / 2 Output
• RS485 : 2x ports
• Edge Storage : MicroSD Card Slot (up to 256GB)
• Interoperability : ONVIF / ITSAPI / CGI / P2P

Environmental

• Power Supply : 12VDC / PoE+ (802.3at)
• Power Consumption : <6W (standby), <12W (light), <17W (Speaker and Red/Blue lights)
• Operating Conditions : -30° ~ +65° C / 10 ~ 90% RH
• Ingress Protection : IP67
• Weather Resistance : Yes
• Vandal Resistance : N/A
• Series : Traffic AI Series
• Camera Type : Bullet
• Housing : Metal
• Pan/Tilt/Rotation : N/A
• Tri-Axis Mounting : No
• ePoE : No
• Dimensions : 395 x 121 x 128mm
