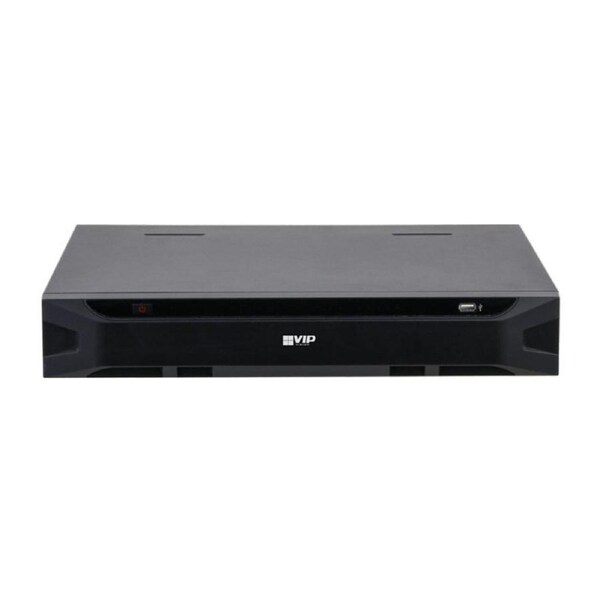

Ultra HD Network Video Decoder (6 x HDMI Out)
The NVD-A6 is an IP video decoder that allows for configuration of up to 6 HDMI displays, creating video walls that display live footage from any camera or recorder connected to the network, plus any connected HDMI video inputs. Each decoder can be fully configured and adjusted over the network or with SmartPSS.
Product features:
- Roaming decoder displays all video feeds on network
- Video wall splicing for up to 36 displays per monitor
- Split screen control with zoom/merge/roam/overlay
- Switch between standard & high definition streams
- Decode up to 8CH 4K, 32CH 1080p or 72CH 720p
- Support for audio, alarm, bi-directional talk, RS232, RS485
- Fisheye dewarp & multi-video split display
- Manage via web browser or VIP Vision™ SmartPSS
System
- Processor - Internal Processor
- Operating System - Embedded Linux
Performance
- Video Format - H.264 / H.265 / SVAC / MJPEG / MPEG2 / MPEG4
- Audio Format - PCM / G.711 / AAC
- Video Decoding Capacity (Separate) - Port 1, 2 & 3: 1CH@32MP (25fps) / 3CH@12MP (15fps) / 4CH@8MP / 16CH@1080P / 36CH@720P / 64CH@D1 Port 4, 5 & 6: 1CH@32MP(25fps) / 3CH@12MP (15fps) / 4CH@8MP / 16CH@1080P / 36CH@720P / 64CH@D1
- Video Decoding Capacity (Total) - 2CH@32MP (25fps) / 6CH@12MP (15fps) / 8CH@8MP / 32CH@1080P / 72CH@720P / 128CH@D1
- Decoding Resolution - 32MP / 12MP / 8MP / 6MP / 5MP / 4MP / 3MP / 1080P / 720P / 960H / D1 / HD1 / 2CIF / CIF / QCIF
- Video Frame Rate - PAL: 1~25fps / NTSC: 1~30fps
- Video Input - 2 x HDMI, 2 x DVI-I
- Video Output - 6 x HDMI
- Collection Resolution - 3840 x 2160 / 1920 x 1080 / 1600 x 1200 / 1680 x 1050 and lower
- Display Resolution - 3840 × 2160 / 2048 × 1152 / 1920 × 1200 / 1920 × 1080 / 1280 × 1024 / 1280 × 720 / 1024 × 768 (4 ports support 3840×2160, the remaining 2 ports support 2560 × 1600
- Display Split - 1 / 4 / 6 / 8 / 9 / 16 / 25 / 36
- Bi-directional Talk - 1 Pair 3.5mm jack (2.0V Line in / 50mV Mic in / 10KΩ,2.0V / 16Ω out)
- Alarm Input - 4ch
- Alarm Output - 4ch relay out (30VDC 1A, 125VAC, 0.5A)
- Communication Interface - 2 RJ45 network port (10M/100M/1000M); 3 RS232(1 DB9, 2 RJ45); 1 RS485
Environment
- Power Supply - 100 ~ 240VAC, 50Hz-60Hz
- Power Consumption - ≤70W
- Operating Temperature - -10°C~+55°C, 10%~95%RH (86Kpa ~ 106Kpa)
- Dimensions - 440 x 408 x 70mm (1.5U)
