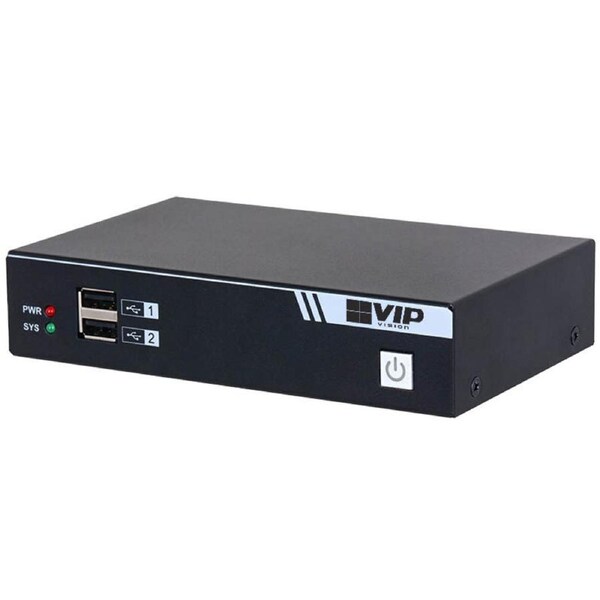

Ultra HD Network Video Decoder (2 x HDMI Out)

The NVD-A2 comes from a series of IP video decoders which allow the configuration of 2 HDMI displays, which create video walls of live footage from any camera or recorder connected to the network as well as any connected HDMI video inputs. This decoder can be fully configured and adjusted over the network or with SmartPSS.

Product Features:

• Roaming decoder displays all video feeds on network
• Video wall slicing for up to 36 displays per monitor
• Split screen control with zoom, merge, roam and overlay
• Switch between standard and high definition streams
• Decode up to 2CH 4K, 10CH 1080p or 32CH D1
• Support for audio and multi-video split display
• Manage via web browser or VIP Vision SmartPSS

Specifications

System

• Processor : High-Performance Embedded Processor
• Operating System : Embedded Linux

Performance

• Video Format : H.265 / H.264
• Audio Format : PCM
• Video Decoding Capacity (Separate)  : -
• Video Decoding Capacity (Total) : Decodes maximum 2Ch@8MP(25fps), 3CH@6MP(25fps), 5CH@5MP(25fps), 5CH@4MP(25fps), 7CH@3MP(25fps), 10CH@1080p(30fps) and 32CH@D1(30FPS) Simultaneously
• Decoding Resolution : 8MP / 6MP / 5MP / 3MP / 1080p / 960H / D1
• Video Frame Rate : PAL: 1~25fps / NTSC: 1~30fps
• Video Input : -
• Video Output : 2 x HDMI
• Collection Resolution : -
• Display Resolution : 1024 x 768@60Hz, 1280 x 720@60Hz, 1280 x 1024@60Hz and 1920 x 1080@60Hz
• Display Split : 1 / 4 / 6/ 8 / 9 / 16 / 25 split. Supports M x N custom split and M x N < 36
• Bi-directional Talk : -
• Alarm Input : -
• Alarm Output : -
• Communication Interface : 1 x RJ45 network port (10 / 100 / 1000M), 1 x RS232 (via RJ45, 3 x USB

Environment

• Power Supply : 100-240 VAC, 50-60Hz
• Power Consumption : <24W
• Operating Temperature : -10°C to +55°C
• Dimensions : 150.0 mm x 92.0 mm x 32.8 mm (L x H x W)
