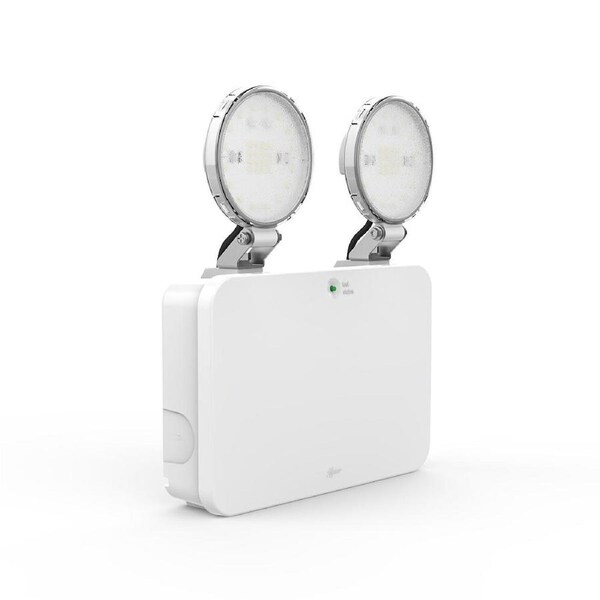

Ektor DUO Core Twinspot Emergency Luminaire White

The Ektor Duo Core (EV-DUO-CORE) is a high-performance IP65-rated twinspot emergency luminaire, delivering bright, reliable illumination in critical situations. With dual 215 lm outputs, adjustable optics, and a robust, weatherproof construction, it is ideal for commercial, industrial, and public installations where durability and compliance are essential.

Designed for surface mounting and supplied with a 1.2m flex and plug, the Duo Core combines ease of installation with long-term reliability-featuring a 90-minute emergency runtime and a product design life of up to 6 years.

Key Features

• Dual 215 lm Emergency Output - Total of 430 lumens for superior visibility during power outages
• Weatherproof & Impact Rated - IP65 for dust/water ingress and IK10 for mechanical impact resistance
• Adjustable Twin Heads - Vertically and horizontally adjustable heads for targeted emergency illumination
• Non-Maintained Operation - Activates only during mains power failure, conserving energy during standby
• Energy Efficient - Consumes just 2.5W max during operation and 1W in standby mode
• Easy to Install - Comes pre-wired with 1.2m rewireable flex & plug for quick connection
• Long Design Life - Rated for 6 years under continuous operating conditions
• Compliant with Australian Standards - Meets AS/NZS 2293.3 and other key emergency lighting regulations

Specifications

• Model: EV-DUO-CORE
• Order Code: 12144
• Emergency Output: 2 × 215 lm (total 430 lm)
• Emergency Duration: 90 minutes
• Emergency Mode: Non-maintained
• Power Consumption: 2.5W (operation), 1W (standby)
• Input Voltage: 230Vac (range 216-253Vac)
• Operating Temperature: 0°C to +40°C
• Mounting: Surface
• Construction: Polycarbonate body and diffuser
• Protection Rating: IP65 (dust/water), IK10 (impact)
• Dimensions: 270 mm (H) × 228 mm (L) × 50 mm (W)
• Warranty: 5-Year RTB Warranty (commercial use)
• Standards Compliance: AS/NZS 60598.1, 2293.3, CISPR 15, and more

Applications

• Commercial corridors and stairwells
• Industrial facilities and warehouses
• Public buildings, schools, and hospitals
• Underground car parks and emergency exit routes
• Areas requiring directional twinspot emergency lighting

Engineered for reliability and performance, the Ektor Duo Core Twinspot Emergency Light offers trusted compliance, rugged durability, and powerful illumination-making it an excellent choice for high-visibility emergency lighting in demanding environments.
