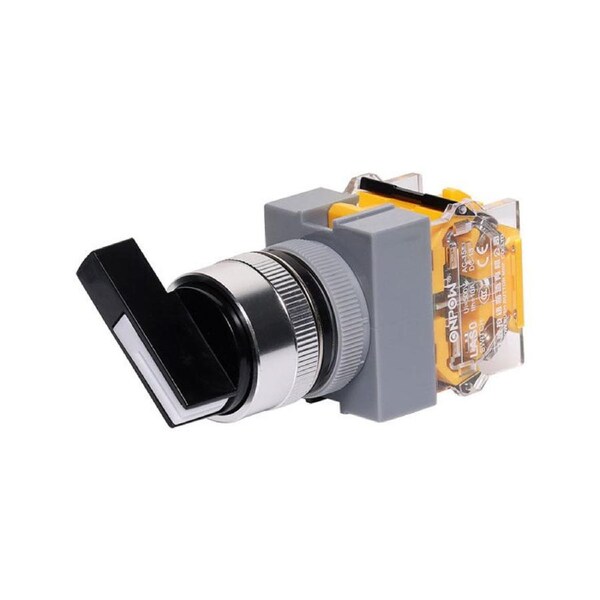

S0826 Heavy Duty Lever Switch
This heavy duty lever switch provides a clear, responsive, and intuitive interface for users to control machinery, regulate large electrical currents, and serve as a safety feature by indicating a machine's position or the presence of a heavy object
General
- Switch rating: 500V 10A
- Mechanical Life: ?1000,000 cycles, ?500,000 cycles
- Electrical Life: ?50,000 cycles
- Contact Resistance: ?200m?
- Insulation Resistance: ?100M? (500V DC)
- Power Frequency withstand voltage: 3,000V, RMS 50Hz, 1min
- Operating temperature: -25°C to 55°C (no freezing, keep the air flowing around push button)
- Torque: ~0.6Nm applied to nut
- Front Panel protection degree: IP40
- Terminal type: Thread connection
- Diameter of welded wire: 2 x 1.5mm² Max
- General Tolerance: 0-18mm=±0.25, 18-80mm=±0.52
- Operating requirement: 90°C rotation requires rotation in place
- General Tolerance: 0-18mm=±0.25, 18-80mm=±0.52
Materials
- Contact: Silver Alloy
- Button: POM
- Body: ABS
- Base: PC
