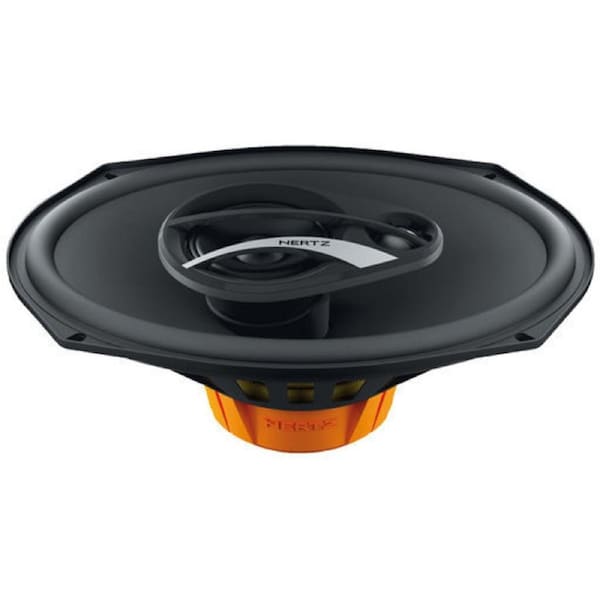

HERTZ DCX690.3 Coaxial 3-Way Car Speakers with Linearity and Wide Dispersion

6 x 9 3-WAY COAXIAL CAR SPEAKERS - HERTZ

An authentic 3-way coax capable of reproducing a wide frequency spectrum.The DCX 690.3 car audio coaxials uses an oversized magnetic group,TPU (Thermoplastic polyurethane) surround, a 60 mm diameter midrange and a PEI dome tweeter. The result is linearity, wide dispersion and extra-ordinary efficiency not found in traditional coax components. An involving, emotional sound, even at high SPL levels. Includes speaker grille.
An authentic 3-way coax capable of reproducing a wide frequency spectrum.The DCX 690.3 car audio coaxials uses an oversized magnetic group,TPU (Thermoplastic polyurethane) surround, a 60 mm diameter midrange and a PEI dome tweeter. The result is linearity, wide dispersion and extra-ordinary efficiency not found in traditional coax components. An involving, emotional sound, even at high SPL levels.

• Large motor assembly for mobile voice coil control.
• Pure copper voice coil, wound on conex former, for maximum lightness.
• Water-repellent treated paper cone.
• TPU surround, for wide excursion and resonance damping.
• 60mm paper tweeter with ferrite magnet.
• Supertweeter with PEI dome, for compactness and energy at high frequencies.
• DIN size basket protected by abrasion-proof dust paint.
• Tin-plated, high current terminals.
• Silver-plated lead wires for maximum reliability and conductivity.
• Butyl rubber protective cover, against crashes and abrasions.
• Epoxy glue for basket and motor system provides perfect coupling.
• Low carbon content plates for maximum magnetic permeability and high heat dissipation.

Technical Specifications

• Frequency: 45Hz to 21KHz
• Depth: 77mm
• Impedance:  4? Re 3.4
• Power: 90Wrms
• Pmax :180Wmax
• Power (RMS): 51-100 Watt
• Zn: 4
• Coil: 25mmØ
• Weight: 0.95kg
• Fs: 66Hz
• Re:  3.4?
• Vas: 25.7L
• Mms: 16.5g
• Cms: 0.35mm/N
• Qes: 1.55
• Qms: 4.06
• Qts: 1.12
• Sensitive  93dB
