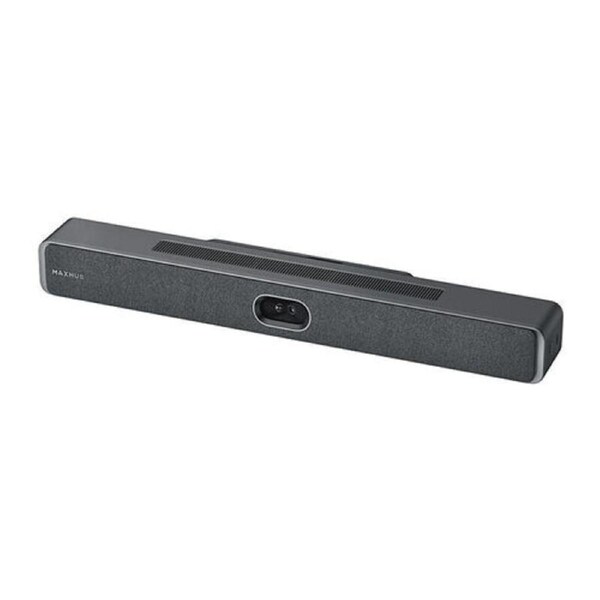

Maxhub Xbar V50 MS Videobar
Maxhub Xbar V50 MS Videobar
Sold and shipped by PC Depot Pty Ltd
Please log in to see shipping fee and estimated arrival
MAXHUB XBar V50 Dual-eyes 4K Microsoft Teams Rooms MDEP Videobar Android system 8GB RAM 64GB ROM / Dual-eyes 100MP 4K Camera HFOV 125? / AP30 x1
Delivery varies by location, please see the expected timeframe to receive your product below:
- Metro: 1-2 business days
- Regional: 2-6 business days
Small items can be delivered to PO Box addresses or Parcel Lockers.
Change of Mind Returns:
Most products come with a 30 day change of mind policy. Please contact us via your MyDeal Account for return approval.
Please Note:
- All unwanted items must be unopened, undamaged and in saleable condition with no writing, labels or sticky tape on package boxes otherwise the request may be rejected
- Postage is paid by the customer
- We do not accept responsibility for return items until they reach our warehouse, so we strongly recommend using tracking and/or insurance for the delivery
- Fees may apply
Warranty Claims:
Most of our products are supported by a 12 month warranty. This warranty covers all manufacturer faults with the product. Some of our products may have a different warranty period, please check the product description for this. Should an issue arise with your order, please contact us via your MyDeal Account to raise a warranty claim.
Features
- 100MP Camera System: Dual-lens camera with 125° HFOV. Ultra-high-resolution camera system redefines image clarity and spatial adaptability
- BYOD Mode: Connect to your PC with a single USB cable for BYOD meeting
- AI-Powered Technology: Auto Framing Speaker Tracking Smart Gathering Intelligent Focus
- AI Noise Reduction: Built-in 12 MEMS microphone array with AI noise reduction
- Studio-Grade Dual Speakers: Dual 15W Stereo Sound Full Frequency
- Cloud Device Management: Remotely monitor device status through cloud-based service (MAXHUB Pivot) via an internet connection
Specifications
Package Contents
- XBar V50 (With Standard Accessories) × 1
- Panel AP30 (With Accessories) × 1
Environmental Condition
- Operating Temperature: 0°C ~ 40°C / 0°F ~ 104°F
- Storage Temperature: -20°C ~ 60°C / -4°F ~ 140°F
- Operating Humidity: 10% ~ 90% RH
- Storage Humidity: 10% ~ 90% RH
- Altitude: Below 5000 m
Physical Specification
- Package Dimensions (L×W×H): 770 × 257 × 275 mm / 30.3 × 10.1 × 10.8 in
- Gross Weight: 9.98 kg / 22.0 lb
Content Sharing
- Teams (In Meeting): 1080p@30
- Local Sharing (Type-C): 4K@30
- Local Sharing (HDMI): 4K@30
Device Management
- Microsoft Device Management Platform (Teams Admin Center / Intune / Pro Management Portal)
- MAXHUB Pivot
XBar V50
Operating System
- MDEP Supported
- Android 13
Camera
- Camera Quantity: 2
- Pixel: 50MP × 2
- Sensor: 1/1.55 inch
- Aperture: F/2.4
- Resolution & Frame Rate:
- H.264 / MJPEG: 3840×2160 2560×1440 1920×1080 1280×720 1024×576 960×540 800×600 640×360
- YUY2: 1920×1080 1280×720 640×360
- Zoom: 6x Digital Zoom
- Field of View: 130° (D) 125° (H) 50° (V)
- Privacy Shutter: Electric and automatic lens shutter
AI Features (Camera)
- Auto Framing
- Speaker Tracking
- Intelligent Focus
- Smart Gathering
- Video Fence
- Audio Fence
Input/Output Ports
- USB 3.0 Type-B × 1 (PC connection)
- USB 2.0 Type-A × 1 (debug/update)
- HDMI Out × 2 (up to 4K@60Hz CEC supported)
- HDMI In × 1 (up to 4K@60Hz)
- Audio In × 1 (third-party input)
- Audio Out × 1 (third-party output)
- RJ45 (Internet) × 1
- RJ45 (M Link) × 1 (expansion device)
- DC In × 1 (19V power supply)
Power Adapter
- AC Input: 100-240 V
- DC Output: 19V / 4.5A
Audio
Speaker
- Quantity: 2
- Sound Channel: 2.0
- Total Power: 15W + 15W
- Max Sound Pressure: 83 dB SPL@1W/1M
- Frequency Range: 80 Hz ~ 20 KHz
Microphone
- Quantity: 12-mic array
- Pickup Range: 8 m
- Frequency Range: 20 Hz ~ 16 KHz
- Sensitivity: -36 ± 1 dBFS
- Sampling Rate: 48 KHz
- Expansion: Supports 2 expansion microphones
AI Features (Audio)
- Noise Reduction
- Echo Cancellation
- Anti-Reverberation
- AEC (Acoustic Echo Cancellation)
- ANS (Automatic Noise Suppression)
- AGC (Automatic Gain Control)
- Full-duplex
Standard Accessories
- Power Adapter × 1
- AC Cable (1.5 m / 4.9 ft) × 1
- HDMI Cable (3 m / 9.8 ft) × 2
- Ethernet Cable (3 m / 9.8 ft) × 1
- Mounted Components (ADA Standard) × 1
Physical Specification
- Product Dimensions (L×W×H): 650.8 × 76.6 × 95.7 mm / 25.6 × 3.01 × 3.77 in
- Package Dimensions (L×W×H): 750 × 136 × 246 mm / 29.5 × 5.4 × 9.7 in
- Net Weight: 2.8 kg / 6.17 lb
- Gross Weight: 6.0 kg / 13.23 lb
Network
- Wi-Fi: Wi-Fi 6 2×2 MIMO
- Wi-Fi Protocol: 802.11 a/b/g/n/ac/ax
- Working Band: 2.4 GHz + 5 GHz
- Bluetooth: 5.2 + BLE
- Network Speed: 1000 Mbps
Panel AP30
Display
- Size: 11.6 inch
- Resolution: 1920 × 1080
- Refresh Rate: 60 Hz
- Backlight Unit: ELED
- Brightness With Glass: 250 nits (Min.) 300 nits (Max.)
- Life Time: ≥ 20000 hours
Touch System
- Type: Capacitive touch
- Surface Treatment: Anti-fingerprint Anti-glare
Sensor
- Motion Sensor: PIR sensor for automatic wake-up
Accessories
- Type-C Cable (1.5 m / 4.92 ft) × 1
- Ethernet Cable (7.5 m / 24.61 ft) × 1
- Screwdriver × 1
- Power Adapter × 1
- AC Cable (1.5 m / 4.9 ft) × 1
Input/Output Ports
- RJ45 (INTERNET) × 1
- RJ45 (EXT) × 1
- DC In × 1
- Type-C (INGEST) × 1
- USB 2.0 (Pairing Wireless Dongle) × 1
Power
- Power Input: 19V DC 4.5A
- Power Output: Type-C PD 65W (Max.)
Physical Specification
- Product Dimensions (L×W×H): 278 × 164 × 82 mm / 11 × 6.4 × 3.2 inch
- Product Weight: 1.16 kg / 2.56 lb
- Package Dimensions (1 pcs): 570 × 246 × 101 mm
- Package Dimensions (4 pcs): 590 × 440 × 280 mm
- Package Weight (1 pcs): 3.12 kg
Operating System
- MDEP Supported
- Android 13
