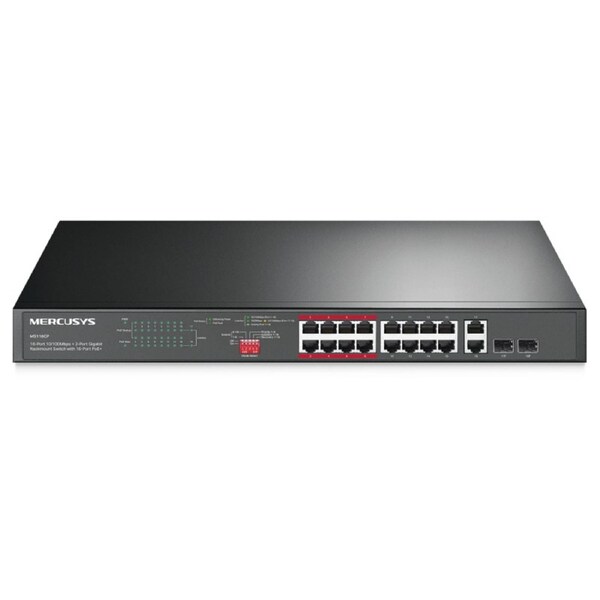

[MS118CP] 16-Port 10/100Mbps + 2-Port Gigabit Rackmount Switch with 16-Port PoE+

Mercusys MS118CP : 16-Port 10/100Mbps + 2-Port Gigabit Rackmount Switch with 16-Port PoE+

• 16x PoE+ 10/100 Mbps RJ45 ports, 2x Gigabit RJ45 ports, and 2x combo Gigabit SFP slots.
• High PoE power budget with up to 30 W for each PoE port and 190 W for all PoE ports.
• Up to 250 m data and power transmission under extend mode specially designed for surveillance system.
• Priority mode for ports 1-8 to guarantees the quality of sensitive applications like video monitor.
• Isolation Mode allows one-click client traffic separation for higher security and performance.
• PoE Auto Recovery guarantees stable operation of PoE devices by automatically rebooting the dropped or unresponsive PD devices.
• Easy to use, with no configuration and installation needed.

• Transfer MethodStore-And-Forward
• Advanced FeaturesCompatible With IEEE 802.3at/af Compliant PDs
  Extend Mode (Up to 250m PoE power supply and data transmission)
  Priority Mode (Ports 1-8)
  Isolation Mode (Ports 1-16)
  PoE Auto Recovery (Ports 1-16)
  Mac Address Auto-Learning And Auto-Aging
  IEEE802.3x Flow Control

• Dimensions (W X D X H)17.3 x 7.1 x 1.7 in (440 x 180 x 44 mm)
• PoE PortsRJ45

  Standard: 802.3at/802.3af compliant
  PoE Ports: Ports 1-16
  PoE Power Budget: 190 W
• Interfaces16 PoE+ 10/100 Mbps RJ45 Ports
  2x 10/100/1000 Mbps RJ45 Ports
  2x Combo Gigabit SFP Slots
• Network Media10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
  EIA/TIA-568 100Ω STP (maximum 100m)
  100BASE-TX: UTP category 5, 5e cable (maximum 100m)
  EIA/TIA-568 100Ω STP (maximum 100m)
  1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
  EIA/TIA-568 100Ω STP (maximum 100m)
  1000BASE-X MMF, SMF
• Power Supply100-240V AC, 50/60 Hz
• Fan Quantity2 Fans
• Physical Security LockYes
• Jumbo Frame10 KB
• Switching Capacity7.2 Gbps
• Mac Address Table8 K
• Max Power Consumption12.55 W (220/50Hz. no PD connected)
  301.71 W (220/50Hz. with 250 W PD connected)
• Max Heat Dissipation42.67 BTU/h (no PD connected)
  1025.81 BTU/h (with 250 W PD connected)

• Packet Forwarding Rate5.36 Mpps

• CertificationsCE, FCC, RoHS
• Package ContentsMS118CP
  Power Cable
  Installation Guide
  Two mounting brackets and the fittings
• EnvironmentOperating Temperature: 0-50 °C (32-122 °F)
  Storage Temperature: -40-70 °C (-40-158 °F)
  Operating Humidity: 10-90% RH non-condensing
  Storage Humidity: 5-90% RH non-condensing
