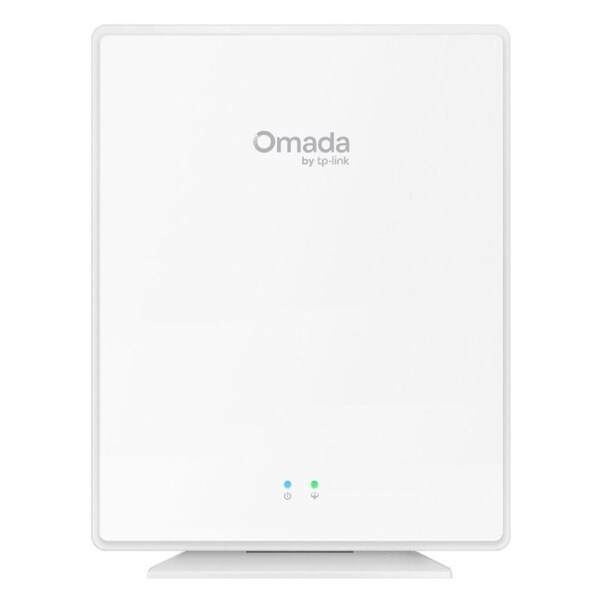

[EAP650GP-Desktop] Omada AX3000 Wi-Fi 6 Desktop GPON Access Point

TP-Link Omada AX3000 Wi-Fi 6 Desktop GPON Access Point - EAP650GP-Desktop is an AX3000 Desktop GPON AP. One fiber to carry wired, wireless, voice, VoIP, data, and HD video services. Supporting PPSK, it's ideal for for hotel rooms and MDUs.

• Seamless 3.0 Gbps Wi-Fi 6 Speeds :2402 Mbps on 5 GHz & 574 Mbps on 2.4 GHz
• Multiple Ports for More Devices:1x GPON port & 4x GbE ports (two support PoE-out)
• One Fiber for Multiple Services :Wired, Wireless, Voice, VoIP, Data, and HD Video Services
• VoIP Calls :Support multiple VolP accounts and various call features, exceeding traditional landlines
• Easy Use :One-Click Pairing and Automatic Adoption
• High Flexibility:Support both desktop and wall-mounting setups
• Advanced Fueatures:Unified management for OLT^ and Omada devices, PPSK , multiple portals, Omada mesh, and seamless roaming

• Interface1x GPON Port
  1x FXS Port
  4x Gigabit Ethernet Ports (Two Support 802.3af PoE Out)
  Note: The two PoE ports support up to 22.4 W total PoE out. If the total PoE power exceeds the upper limit, the lower-priority ports will shut down automatically. A port also automatically powers off if its output exceeds 15.4 W. Powered-off ports will attempt to resume power supply after 10 seconds. By default, ETH0 has a higher port priority than ETH1.
• GPON InterfacePort Type: SC-APC
  Standards and Protocols: ITU-984.x, G.988, Class B+
  Data Rate: 2.488 Gbps (Downstream); 1.244 Gbps (Upstream)
  Fiber Type: 9/125 um Single mode
  Max. Cable Length: 20 km
• ButtonReset
  LED
• Power Supply53.5V/0.81A DC
• Max. Power Consumption20W
  Note: PoE out power not included.
• Weight511g
• Dimensions ( W x D x H )6.9 x 5.5 x 1.3 in (175 x 140 x 33 mm)
• AntennaInternal Omni
  2.4 GHz: 2x 4.5 dBi
  5 GHz: 3x 5 dBi
• MountingDesktop / Wall mouting (Kits included)

• Concurrent Clients100+
• Wireless StandardsIEEE 802.11 a/b/g/n/ac/ax
• Frequency2.4 GHz and 5 GHz
• Signal Rate5 GHz: 2402 Mbps
  2.4 GHz: 574 Mbps
• Wireless FunctionsMultiple SSIDs (16 SSIDs, 8 on each band)
  Enable/Disable SSID Broadcast
  Enable/Disable Wireless Radio
  Guest Network
  Automatic Channel Assignment
  Transmit Power Control (Adjust Transmit Power on dBm)
  QoS (WMM)
  Seamless Roaming
  Mesh
  Beamforming
  2x2 (2.4G & 5G) MU-MIMO
  UL/DL OFDMA
  Rate Limit (Based on Client)
  Band Steering
  Load Balance
  Airtime Fairness
  RADIUS Accounting
  MAC Authentication
  Reboot Schedule
  Wireless Schedule and Statistics
  Static IP/Dynamic IP
• Wireless SecurityCaptive Portal Authentication
  Access Control
  Maximum number of MAC Filter: 4000
  Wireless Isolation Between Clients
  VLAN
  Rogue AP Detection
  802.1X Support
  WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
• Transmission PowerCE:
  <20 dBm(2.4 GHz, EIRP)
  <23 dBm(5 GHz, band1 & band2, EIRP)
  <29 dBm(5 GHz, band3, EIRP)
  FCC:
  <26dBm (2.4 GHz)
  <27 dBm (5 GHz)

• Omada AppYes
• Restore & BackupYes
• NTPYes
• Centralized ManagementOmada Hardware Controller
  Omada Software Controller
  Omada Central (Cloud-Based)
  Omada App
• Cloud AccessYes. Require the use of an Omada controller.
• Email AlertsYes
• LED ON/OFF ControlYes
• Management MAC Access ControlYes
• SNMPv1, v2c, v3
• System Logging Local/Remote SyslogSystem Log
• SSHYes
• Web-based ManagementYes
• Zero-Touch ProvisioningYes.

• CertificationCE, FCC, RoHS
• Package ContentEAP650GP-Desktop
  Desktop/Wall Mounting Kit
  Installation Guide
• EnvironmentOperating Temperature: 0-40 °C (32-104 °F)
  Storage Temperature: -40-70 °C (-40-158 °F)
  Operating Humidity: 10-90% RH non-condensing
  Storage Humidity: 5-90% RH non-condensing
