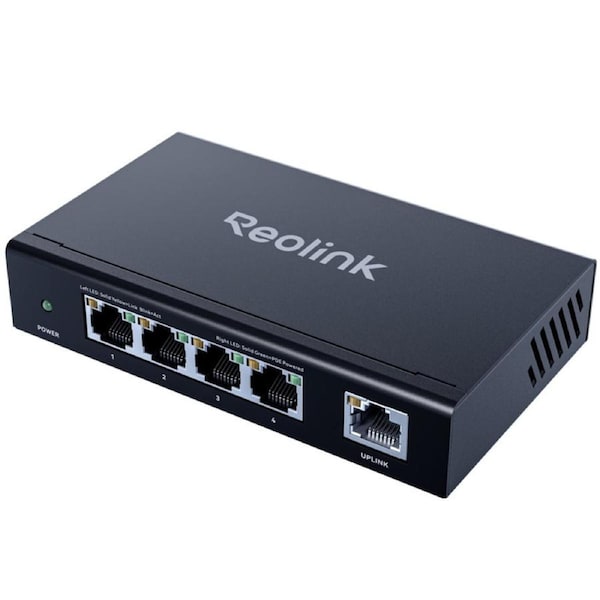

This is a 5-port Gigabit PoE switch supporting 65W power budget, with 4 PoE+ ports, 1 Gigabit uplink, power management, extend mode, recovery mode, fanless quiet design, and durable metal housing.
It provides a reliable PoE solution featuring 4 Gigabit PoE+ ports (10/100/1000Mbps) and 1 Gigabit Ethernet uplink ports (10/100/1000Mbps). Compliant with IEEE802.3af/at standard, it can deliver up to 30W for each PoE port and has a total power budget of 65W for up to 4 PoE devices.
With Extend Mode enabled, the transmission speeds of Port 1 and 2 will be limited to 10Mbps, extending PoE distance to 820ft (250m) *. Simplify long-distance cabling for large spaces.
*Note: Standard Cat5e cable is required.
Automatically detects and reboots offline or unresponsive PoE devices, ensuring stable PoE connection and eliminating the hassles of manual resets.
By monitoring power usage of connected devices,this PoE switch safeguards crucial ports and prevents power overloads. Once the total consumption exceeds 65W, it will power down sequentially from Port 4 to Port 1 until it drops below the switch's threshold.
It automatically identifies whether the connected device supports PoE and requires power, ensuring non-PoE is not powered to prevent potential damage.
With professional lightning protection on both ports and power supply, this PoE switch effectively blocks sudden spikes in voltage, avoiding damage to connected devices.
With fanless design, this PoE switch operates without making any noises, ensuring a quiet environment at all times.
Working perfectly with your PoE cameras, it transfers both data and electric power through only one Ethernet cable. You can connect it directly to your NVR or to the same LAN as your cameras. Easy to set up even for beginners.
Note: This PoE switch can only provide network data but not power when connected to Wi-Fi cameras.
What's in the Box
- 1× RLA-PS1E
- 1× 65W Power Adapter
Free Shipping
Generally Shipped Out in 2 Business Day
Warranty
We provide a 2-year limited warranty for new Products (IP Camera/NVR System/Accessories) purchased from Reolink and a 1-year warranty for Reolink Certified Refurbished Products.
If you encounter any issues with Reolink products, please feel free to contact us and we will help process the warranty accordingly.
30-Day Return Policy
You may return the unwanted product to Reolink for a full refund or replacement within 30 days of the delivery date. You are responsible for the shipping fees. Beyond the end of those 30 days, refunds and exchanges for unwanted products are not available.
- PoE Port: 4×10/100/1000Mbps
- Uplink Port:1×10/100/1000Mbps
- Power Voltage:Input Voltage: AC 100-240V
- Power supply: 52V 1.25A 65W
- PoE Protocol:IEEE 802.3af/IEEE 802.3at
- Max. Power Per Port:30W
- Working Temperature:-10°C to +45°C (14°F to 113°F)
- Working Humidity:10% to 90%, non-condensing working
- Dimensions:125.5×76.8×25.5mm
- Weight:234g
