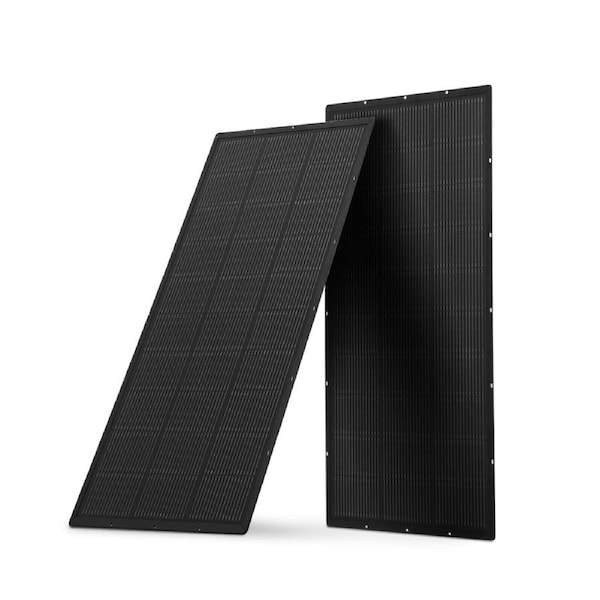

Adventure is unpredictable, but your power supply doesn't have to be. At just 5 mm thick, the San Hima ultra slim solar panel fits seamlessly onto your roof, barely adding any height at all. Its low-profile design is barely noticeable from the side, giving you the freedom to navigate low-clearance spots with ease. With Grade-A monocrystalline cells, this panel brings a solid 25% conversion efficiency, meaning you'll get more juice from every bit of sunlight. Plus, PERC technology reflects stray light back into the panel, ensuring maximum energy capture. Multi-Busbar technology means your panel keeps working-even if one cell gets damaged. And thanks to the bypass diodes, you don't have to worry about partial shading slowing you down either. Looking to build a bigger system? You can link up to 8 panels in series or 4 in parallel. The tempered glass is built to withstand impacts, while the lightweight aluminum frame keeps it sturdy without weighing you down.
FEATURES
- Incredibly Lightweight: Weighing just 4.3 kg, our San Hima 110W ultra slim fixed solar panel won't weigh your vehicle down or cut into fuel efficiency.
- Ultra-Slim Build: At just 5 mm thick, it sits low on your 4WD, reducing wind resistance and keeping overall height down so you can squeeze into those tight spots.
- PERC Technology: Equipped with PERC tech, each cell reflects unused light back into the panel to capture more energy and charge your battery faster.
- Grade-A Monocrystalline Cells: This cell delivers 25% conversion efficiency, outperforming standard solar panels of the same size for more power per centimeter.
- Multi-Busbar Technology: Shorter electrical paths mean less power loss and higher output. Even if one cell breaks, energy can still be captured by other busbars.
- Series or Parallel Ready: Connect up to 8 panels in series or 4 in parallel for more output-rated up to 1,000V DC, perfect for powering larger setups.
- Bypass Diode Technology: Keeps generating power even in partial shade-ideal for rooftop installs where sunlight shifts through the day.
- Built Tough: From impact-resistant tempered glass to a slim but sturdy aluminum frame and IP68 protection, this panel is ready for whatever the outdoors throws at it.
- Easy Mounting: Our San Hima 110W ultra slim fixed solar panel also comes with brackets and rubber pads for quick, secure, and hassle-free installation.
- Sleek Aesthetic: The black finish of our 110W ultra-thin solar panel blends effortlessly with most roof racks, giving your rig a clean, streamlined look.
SPECIFICATIONS
Solar Cell Type:Grade-A Monocrystalline Cells
Max. Power:110W
Open Circuit Voltage (VOC):22.32V
Short Circuit Current(ISC):6.82A
Max Power Voltage (VMP):19.18V
Max Power Current (IMP):6.03A
Module Efficiency:25%
Maximum System Voltage:1,000V
Maximum Series Fuse Rating:50A
IP Rating:IP-68
Operating Temperature:-20℃~75℃
Nominal Operating Cell Temperature (NOCT):40℃
Power Tolerance:10%
Output Tolerance:10%
Front:Tempered Glass
Connector:MC4
Certifications:CE, FCC, PSE, RoHS
Package Size(Single):104.2 x 66.4 x 6.5 cm(LxWxH)
Product Weight(Single):4.3 kg (panel) / 4.6 kg (total)
PACKAGE INCLUDES
2 x San Hima 110W Ultra Slim Fixed Solar Panels
Set Of Mounting Kit
2 x User Manuals
WARRANTY
3 Years Warranty
