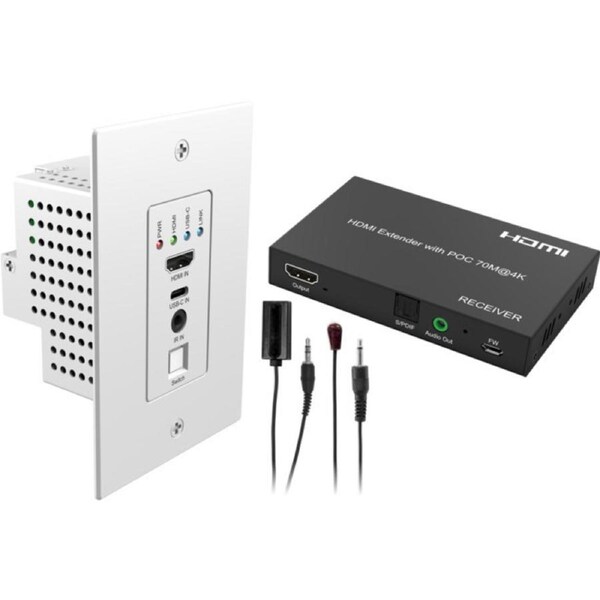

PRO2 Hdmi2.0 Usb-C Over Cat6 Wall Plate Extender 70M Usb-C Pd 65W Switch Ir Rs232 Spdif

HDMI2.0 and USB Type-C 4K 60Hz up to 70M wall plate extender with IR, RS232, POC, S/PDIF, Audio extraction, PD 65W charging.

Features

• HDMI2.0 + Type-C Extender in North American standard Wall plate to Box Kit
• Support HDMI or USB-C input, with the Switch button on the wall plate
• Transmit up to 70m(229ft) under 4K60Hz YUV4:4:4 or 1080p over a single Cat5e/6 cable
• Type-C input(USB3.0) supports 4K60hz, PD power charging(65W max)
• HDCP2.2/ 1.4 Compliant
• Support EDID management
• Support HDR10, POC and RS232 pass-through
• Support one-way wide-band IR pass-through
• Support S/PDIF and PCM2.0 analog audio extraction(at RX)
• Support Dolby True HD, PCM, and DTS-HD master audio 7.1CH
• Support RS232/ Micro USB port for firmware upgrade
• Support auto-detect and switch to either one of the sources when there is a signal

Note: The USB Type-C only does the video transfer and PD charging, no data transfer.

Requires IEEE-568B cable termination standards and solid core cable. Use Solid/FTP CAT5/6 cables if you are running a cable 15 metres or more.

Sepcifications

What is in the box?

• 1 x HDMI Wallplate Transmitter
• 1 x HDMI Receiver
• 1 x IR TX Emitter
• 1 x IR RX Receiver
• 1 x 24V/5A DC power supply with Phoenix connection
• 1 x User Manual
• 1 x Decoration panel
• 1 x pair x mounting ear for receiver
• 1 x pair x phoenix connector
• 1 x set of screws
