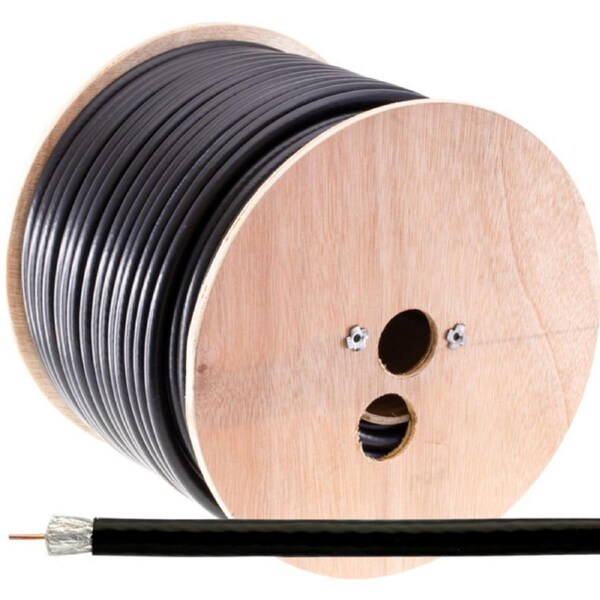

DOSS Rg11 Quad Shield Coax Cable 100M Roll 75Ohm Doss

• Cable construction (inner- to outer-most):
  • Core:
    • 14 AWG / O1.63mm
    • CCS (Copper Coated Steel) 21%
    • DC Resistance: 11Ohm / 1000ft. at 20oC
  • Dielectric Foam PE: O7.11mm
  • Shielding:
    • Bonded Aluminium Foil
    • Braid Aluminium Shield:
      • 96x O0.16mm,
      • 60% Coverage
    • Non-bonded Aluminium Foil
    • Braid Aluminium Shield:
      • 64x O0.16mm,
      • 40% Coverage
    • Shield DC Resitance: 6.9Ohm / 1000ft. at 20oC
  • PVC Jacket:
    • O10.3mm
    • Colour: Black
• Operating temperature range: -20 ~ 60oC
• Return loss: 15dB Max (100% swept tested)
• Impedance: 75.0Ohm 3Ohm
• Attenuation:
  • 0.20dB/100ft @ 1MHz
  • 0.50dB/100ft @ 10MHz
  • 0.95dB/100ft @ 50MHz
  • 1.25dB/100ft @ 100MHz
  • 1.75dB/100ft @ 200MHz
  • 2.45dB/100ft @ 400MHz
  • 3.35dB/100ft @ 700MHz
  • 3.8dB/100ft @ 900MHz
  • 4.00dB/100ft @ 1000MHz
  • 4.40dB/100ft @ 1200MHz
  • 4.80dB/100ft @ 1450MHz
  • 5.30dB/100ft @ 1800MHz
  • 5.80dB/100ft @ 2200MHz
