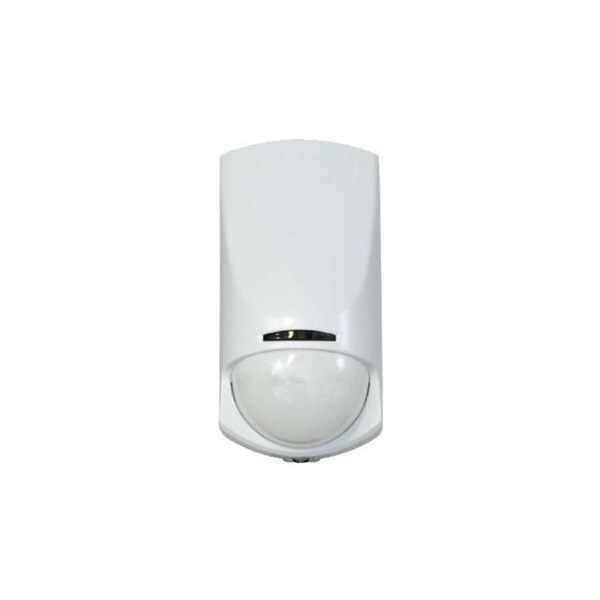

NESS Digital Dual Microwave Pir Qdt200H-A
Overview
100-205 DIGITAL DUAL MICROWAVE PIR
RELIABLE HARSH ENVIRONMENT MOTION PROTECTION
The Ness QDT200H-A (or XDT200H) Dual Technology PIR / Microwave is a motion detector specially designed for the protection of areas of harsh environment or where added protection against false alarms is required.
Installed in rooms or in hallways, the dual detection technology detector protects you by detecting intruders body temperature using infra-red technology and motion with its Microwave technology.
Dual technology 15-metre detector using both microwave and passive infrared (PIR) detection. This combination of technologies virtually eliminates false alarms but faithfully detects intruders.
Features:
- Digital signal analysis
- Range 15m
- Detection angle of 100o
- Pulse counter
- Temperature compensation
- White light protection
- Bypassable LED
- 3 signalling LEDs
- Anti-opening and anti-dislodgement protection
- Predisposed for EOL resistor
- AND/OR function alarm trigger
- Smart function
- X Band microwave detection
- Operating temperature: 0oC +50oC
- Power supply voltage: 9V 16V dc
- Current absorbed: 20mA @ 12V dc
- Installation height: 2.2m
- Dimensions: 120x60x44 mm
Specs
| MOUNTING HEIGHT | 2 .2 m wall or corner |
| COVERAGE | 15m x 15m @ 100o |
| PIR SENSOR | dual element pyroelectric |
| MICROWAVE SOURCE | Solid state 10.525 GHz |
| MICROWAVE RANGE SELECT | Adjustable |
| PULSE COUNT | Adjustable |
| VISUAL DISPLAY | 3 Signalling LED's |
| OPERATING VOLTAGE | 9 - 16 VDC |
| DIMENSIONS (H-W-D) | 120x60x44 mm |
| TEMPERATURECOMPENSATION | Yes |
| CURRENT DRAW | 20mA @ 12VDC |
| ALARM OUTPUT | Normally closed relay, dry contacts. Max. 0.5A@24V |
