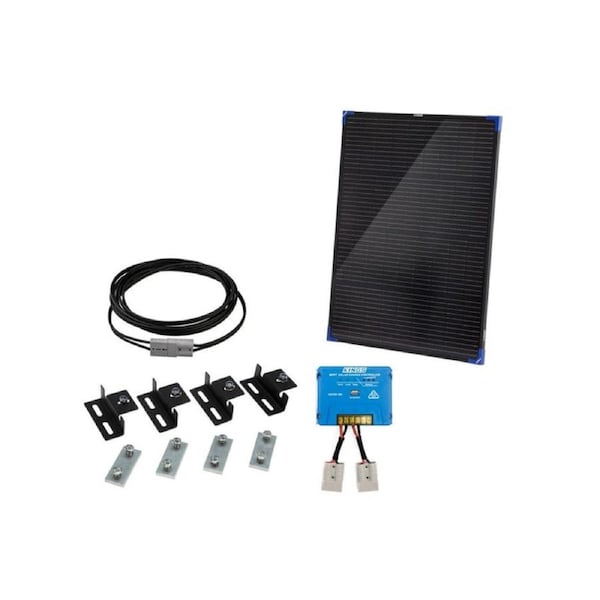

Kings 100W Fixed Glass Solar Panel+ 6m Lead+ Black Brackets + 20A MPPT Regulator
• The perfect partner for your portable solar blankets or panels, the 6 metre cable length allowing you to camp in the cool shade and still set up your solar in full sun. Specifically designed for portable solar the 2.5mm2 copper cables minimise voltage drop. The Anderson-compatible quick connect plugs are rated for up to 50A of current and make setting up camp quick and easy.
• Charge your batteries quickly and efficiently with the Adventure Kings 20A MPPT Solar Controller. Rated for up to 50V input it's suitable for both 12 and 24V systems. Connecting and using the Adventure Kings 20A MPPT is easy thanks to the two included Quick Connect Plugs. LARGE ALLOY HEAT SINK to Keep the internal electronics and microcomputer cool even in tough conditions!
• Mount your Kings Fixed Solar Panel to your roof rack or any flat surface with ease using the Black Solar Panel Mounting Brackets Kit. Raises the solar panel approx. Raises panel 20mm off the top of the surface to allow airflow underneath to keep your panel cool on hot days. Folded Stainless Steel with Black Finish.
KINGS 100W FIXED SOLAR PANEL | UP TO 8.33A AT 12V | GRADE A CELLS | TEMPERED GLASS
Output 105W
Power Tolerance +/- 5%
VOC (Open Circuit Voltage) 23.07V
ISC (Short Circuit Current) 5.61A
VMP (Maximum Power Voltage) 19.90V
IMP (Maximum Power Current) 5.30A
ISC Temperature Coefficient 0.05%/°C
VOC Temperature Coefficient -0.39%/°C
Pmax Temperature Coefficient -0.44%/°C
Standard Test Condition 1000W/m2, 25ºC, AM1.5
Connection Kings Quick Connect (Anderson Style) Plug
Dimensions 87.5 x 68.3 x 2 cm
Weight 6.6kg
Warranty 2 Years
KINGS BLACK SOLAR PANEL MOUNT BRACKETS
Suits Kings Fixed Solar Panels | Black Finish
Material Folded Stainless Steel
Hardware Stainless Steel
Weight 800gm
Warranty 1 Year
KINGS 6M SOLAR EXTENSION LEAD
2.5MM2 COPPER
Conductor Material Multi-Strand Copper 51x0.25
Conductor Cross Sectional Area (each wire) 2.5mm2
Insulation Material 0.8mm PVC
Outer Sheath material 1mm PVC
Outer Diameter 9.3mm
Recommended Maximum Current 20A
Operating Temperature Range -5°C~+70°
Plug Type Anderson-style Quick Connect
Plug Rating 50A
Plug Material UL94-V0 Flame Resistant Thermoplastic
Connector Material Copper
Maximum Rated Voltage 300V
MPPT Regulator
• Regulator Type: Maximum Power Point Tracking
• Dimensions: 131×99.5×29.5(mm)（L×W×H）
• Regulator current rating: 20A charge / discharge
• Regulator Voltage: Suitable for 12V or 24V systems (automatic)
• Maximum Regulator Voltage input: 50V
• No-load current (standby current): <10mA
• Safety: Overload & short circuit protection ≥1.5x rated current
• USB output: 5V 1A
